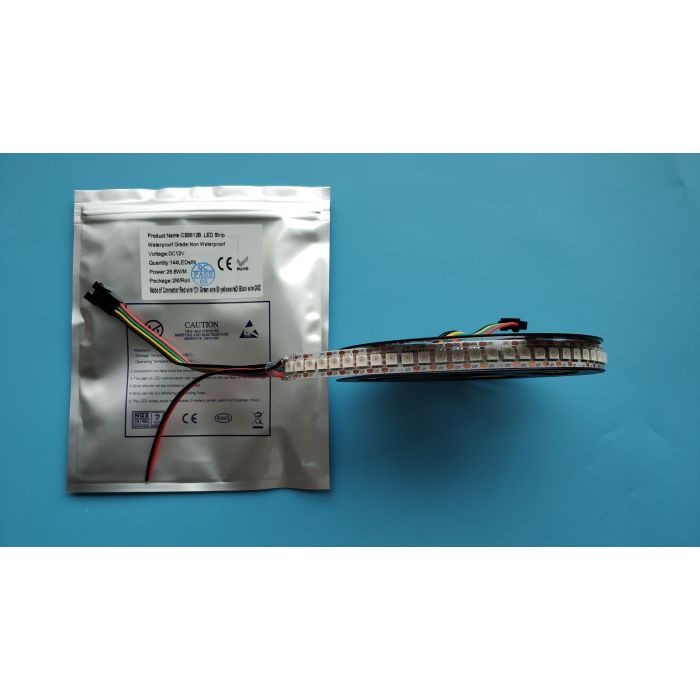

12V 2 meters 288 LEDs addressable CS8812 RGB 5050 LED light strip
- Buy 100 for $42.75 each and save 9%
- Buy 1000 for $39.95 each and save 15%
CS8812 IC is integrated with SMD RGB 5050 LED, replace of WS2815, with signal break-point continous transmission function, interrupt compatibility, when one pixel fails, white the other can still work well
SMD 5050 LED has 16 million vivid RGB dream colors, and each LED can be individually addressable, excellent performance
Made in Shenzhen of China, high quality with 2 years warranty, direct from factory, good price
We are LED light factory which can supply customized LED products, for big quantity products, please contact us
Feature
DC12V working voltage: compared with DC 5V WS2813 LED strip, the 12V voltage drop is much smaller than 5V.
Dual-signal wires version: signal break-point continuous transmission, it has two signal wires, one of wire is for backup, when one LED is damaged, it won't affect signal transmission, while the other pixels can still work well.
Individually addressable: one pixel control one LED, each LED can be controlled individually, you can use Madrix, Arduino, Adafruit NeoPixel Library, FastLED library and Raspberry Pi, K-1000C etc. to program the animation effects.
It is very suitable for large lighting project such as city skyline lighting, building outline decoration, HD advertising screen, shopping malls decoration etc.
PWM 2KHz/m, data transmit up to 800kbps, 256 grayscale effect
Specifications
IC type: CS8812, each IC built inside a SMD RGB 5050 LED
Light source: full color SMD RGB 5050 LED, high intensity and reliability
Gray levels: 256
Working voltage: DC 12V
LED quantity: 144 per meter, 2 meters have total 288 LEDs
Power: each LED is 0.24W, 288 LEDs have total 69.12W
Beam angle: 120°
Protection level: IP20 non-waterproof is default, IP65 gel coating waterproof and IP67 silicone tube waterproof is optional
FPCB color: white is default, black is available
Dimension: 5000x12x2.5mm
Working temperature: -40 ~ 70℃
Storage temperature: -50 ~ 80℃
Life span: 50 000 hours
Certifications: CE, RoHS
Red wire: positive 12V+ voltage
Green wire: data
Black wire: ground - voltage
Yellow wire: backup
Application
Light up colorful home life, DIY household lights for hallways, stairs, trails, windows.
Hotels decoration use, theaters, clubs, shopping malls, festivals and performances use.
Architectural decorative lighting, archway, canopy and bridge edge lighting, security lighting and emergency.
Extensively applied in backlighting for signage letters, concealed lighting and advertisement sign lighting.
Applicable for automobile & airplane model decoration, contour lighting or border.
