3 keys mini R101 RGB color LED strip controller

$1.25
In stock
SKU
1384
  • Buy 100 for $1.00 each and save 20%
  • Buy 1000 for $0.95 each and save 24%

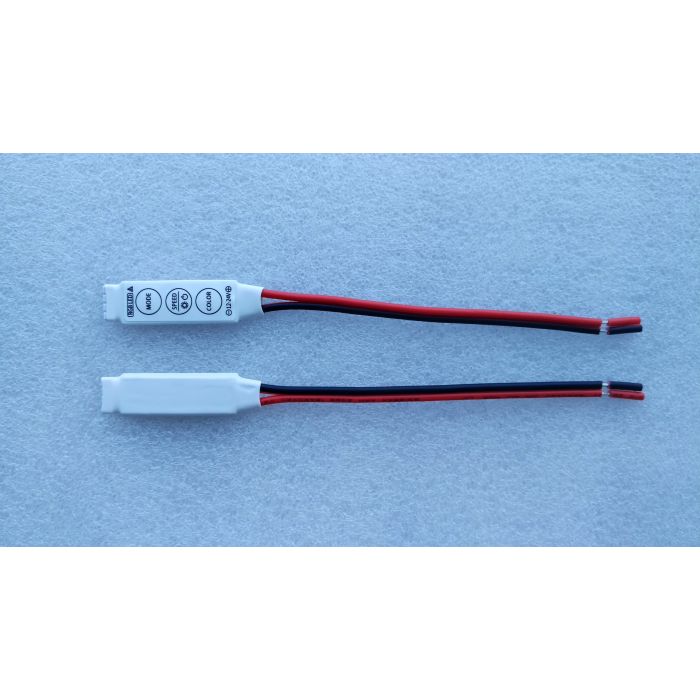

RGB LED strip controller, ultra slim, very small

made in Shenzhen, high quality



R101 is a brand new RGB LED strip controller, it presents 19 dynamic modes and 20 static color, the top performance of similar products. You can easily change mode, speed, color and brightness by pressing 3 keys on its ultra slim body. R101 also has auto memorize function and can output up to 144 watts power. It's the best mate for your RGB LED strips.

working voltage: 12-24V DC

max ouput current: 12A

working temperature: -30 ~ +75 celsius

dimension: 42x12x3mm

speed grade of dynamic mode: 5 levels

brightness grade of static color: 5 levels

1. 19 dynamic modes

2. 20 static colors

3. 256-level PWM control mode

4. Auto-cycle dynamic mode

5. Speed and brightness adjustable

6. Up to 144W power

7. Auto memorize funtion

8. Easy operate keys

9. Ultra slim design

10. Competitive price



Installation Guide

Arrows should be on same side

To 12V power supply

Red connect to Positive,

Black connect to Negative.



Installation:

1, Connect LED strip to OUTPUT jack as the picture, align the arrows of strip plug and output jack. Make sure the cable is well insulated and no short circuit.

2, Connect the +12V cable to DC12V power supply as the picture, make sure the cable is well insulated and no short circuit.

3, Power on and play.



Operation:

1, MODE key: Switch to dynamic mode. Press this key to switch among 19 dynamic modes. Keep pressing MODE key over one second will switch to demo mode which automatically change dynamic mode in loop.

2, COLOR key: Switch to static color mode. Press this key to switch among 20 static colors.

3, SPEED/BRIGHT key: Adjust speed or brightness. At dynamic mode, press this key to change playing speed among 5 levels; At static color mode, press this key to change color brightness among 5 levels.
