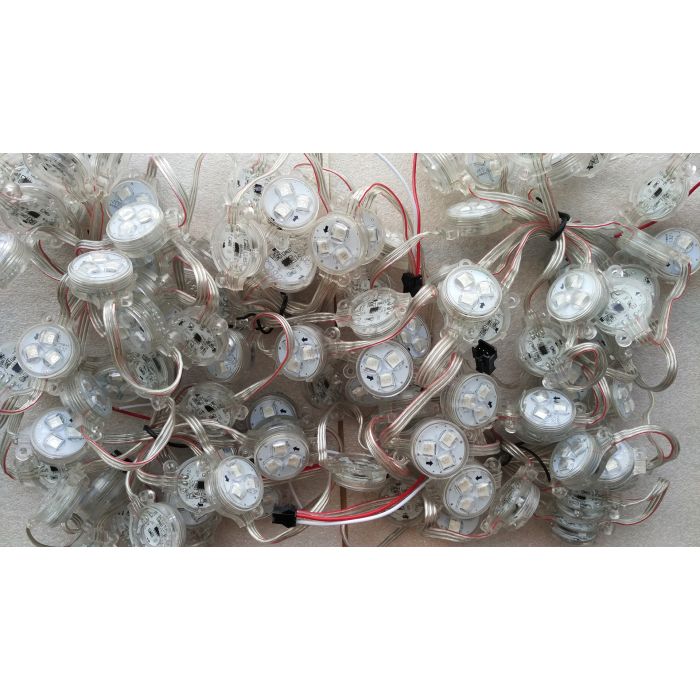

30mm B type 12V WS2811 UCS1903 SM16703 RGB 5050 LED point light
Programmable digital WS2811, UCS1903, SM16703 IC, this price includes 20 pieces of module node, each node can be addressable individually
DC 12V safe working voltage, made in Shenzhen of China, reliable quality with 2 years warranty
We are LED light factory which can supply customized LED light products, for big quantity products, please contact us
Parameter
1) Voltage: DC 12V
2) IC type: WS2811 is default, UCS1903, SM16703
3) IC quantity: 1 piece per light, total 20 ICs
4) LED type: SMD 5050Â RGB, you can choose customised ultra bright high quality brand Epistar LED
5) LED quantity: 3 piece per light, 20 nodes have total 60 LEDs
6) Pixel: each module is one pixel, 20 nodes have total 20 pixels
7) Max power: 0.72W/piece
8) Bit: 8
9) Greyscale: 256 levels
10) Diameter: 30mm, IP68 rate waterproof protection, with lens
11) Package: 20 pieces/string
12) Distance between lights: 150mm
 Â
Connection
1) Signal wire: DC+, DAT, GND
2) DC+ and GND connect to power supplier; DAT and GND connect to controller
3) Relative Controller: SPI controller support WS2811, UCS1903, SM16703
4) Support online control
  Â
Color
1) Each pixel node can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and video
   Â
Installation Notice
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
