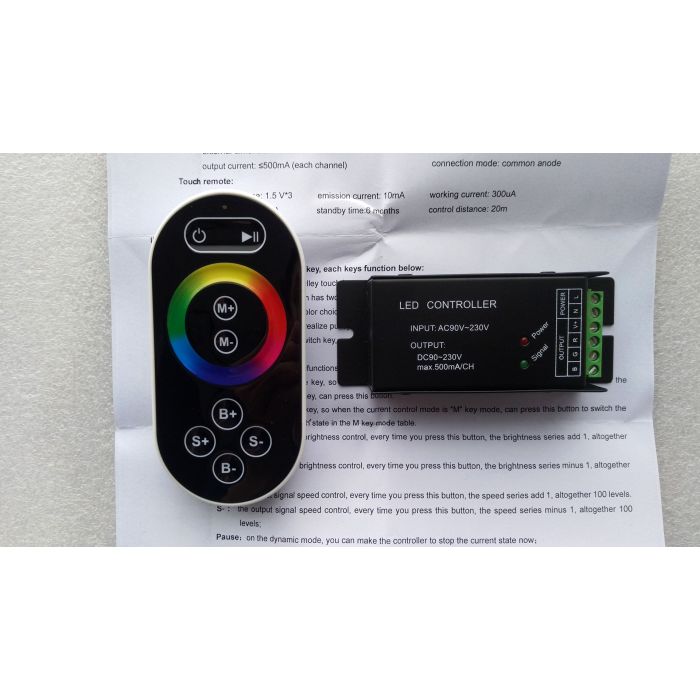

AC 90-230V high voltage 2.4GHz RF touch remote RGB LED controller

This product is a novel LED controller developed by our company which can realize multistage touch dimmer. Adopting advanced touch design, through the panel controller combined with touch remote way, realize flexible control. Touch remote has good performance, beautiful, fashion, easy to use. This product suit for every occasions, such as: point light source, flexible strip, wall washer lamp, glass curtain wall light and such lighting controller.

Touch-button, ultra thin, light quality, protable.

Touch-key count up to 64, up to 64 kinds of mode function, small volume , more key funcation.

Easy to use, have color pulley touch screen, all sorts of design and color mode at a glance, can a single point also can continuous touch to realize color mode select, users can speedily choose the needed color, and the static and dynamic mode can change freely.

Auto dormancy function, the remote control is without buttons state more than 20 seconds, remote will automatic enter the standby state, realize save electricity, extending battery life.

working temperature: -20~60 ℃

supply input voltage: AC 90~230V

output voltage: AC 90~230V

output: 3 channels

connection mode: common anode

external dimension: L108*W42*H27mm

packing size: L135*W135*H50 mm

net weight: 130g

gross weight: 165g

static power: <1W

output current: <500mA (each channel)

Touch remote
Working temperature: -20~60 Celsius

Power supply mode: AAA*3 battery

Supply voltage: 4.5V

Static power consumption: 0.015mW

Standby current: 3uA

Work current: 300uA

Emission current: 10mA

Remote distance: 20m

Standby time: 6 months
