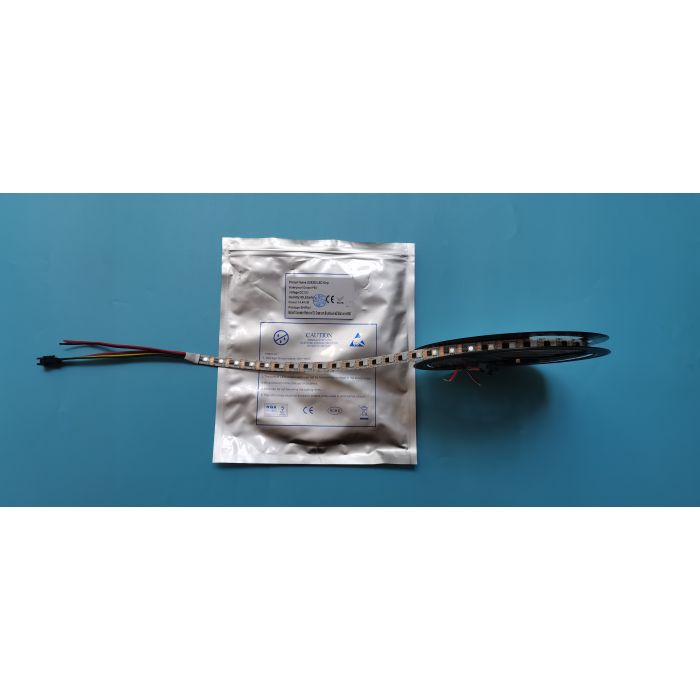

GS8208 DC12V 300LEDs breakpoint-continue addressable RGB LED strip
- Buy 100 for $65.25 each and save 5%
- Buy 1000 for $62.50 each and save 9%
With breakpoint-continue function, each LED is individually addressable and programmable, excellent performance
Made in Shenzhen of China with 3 years warranty, high quality
We are professional LED light factory, for big quantity orders, you can customize LED products
Features
The voltage of GS8208 is 12V, external IC, and it is individually addressable, breakpoint- continue.
Dual signal line version and signal breakpoint continuous transmission. If a LED damages, the work of other LEDs will not be affected. It is equipped with a 4-pins JST-SM connector with two separate power/ground terminals.
With 3M adhesive backing( only for IP20, IP65), you can install the LED strips on anywhere you want, each LED can be cut, easy to install.
Each lamp bead forms a ring, which can be arbitrarily cut according to the length of the ring without damaging other convenient fixed and stall parts. The flexible cutting operation makes the structure simple, ultra-thin design, low-temperature light source, and the selection of the auxiliary material more flexible, installation energy-saving installation, lower heat, higher brightness, cleaner, lower energy consumption and more beautiful.
Adopt the chip of international leading manufacturer, brightness is high and the angle is wide, consistent color and stable performance.
With the DC12V power supply, the protection rating level is more secure: IP20(default), IP65, IP67, no-radiation, a wide range of use, strong impact resistance, multi-color, it is a completely new generation of green high-tech products.
Product specification
LED Strip Type: SMD 5050 dream color 300LEDs/16.4feet(60LEDs/meter)
LED Chip: GS8208 IC super brights chip
Dimension: 16.4feet/roll, every 1 PCS LED can be cut
LED Quantity: 60 LEDs per 1meter (3.28 ft)
IC Quantity: 60 IC per 1meter (3.28 ft)
Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12VDC
Working Power: 72W/16.4ft Maximum
Lumen Per LED: 20~22Lumen 6600lm Max /16.4ft
Wavelength NM(RGBY): 2000-2500mcd
Beam Pattern: 120 degree
WaterProof: non-waterproof IP20, waterproof IP65, IP67
Lifespan: 50000+ hours
Warantty: 3 years
Applications
LED programmable digital display
Hotels decoration use
Backlighting decoration
Concealed lighting, cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, wine cabinet decoration
Show exhibition decoration
Waterproof level description
IP20 non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 waterproof (Glue cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicone tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic gel, with a plastic fastener, the top level of waterproof, For Outdoor)
You can cut the strip every few inches, allowing you to freely design your project without worrying about space requirements to many different surfaces.
The back of the strip is fitted with a strong 3M tape, allowing you to peel and stick lights
IP67/IP68 type which will come with mounting brackets
