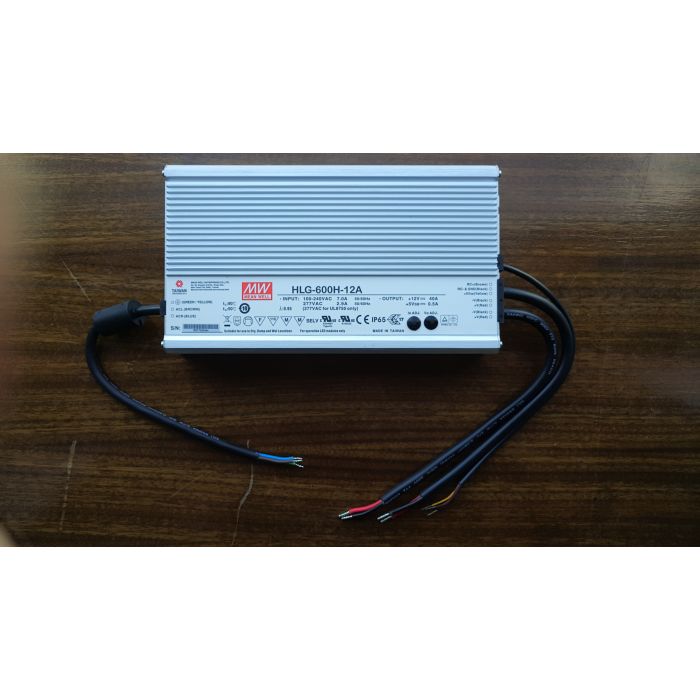

Mean Well HLG-600H waterproof CV+CC power supply LED driver
- Buy 1000 for $165.00 each and save 2%
Click here to view the HLG-600H Meanwell LED power supply detailed specifications operating manual
We are the distributor of Mean Well LED power supply drivers, genuine version, not cheap copycat
Features
Constant voltage + constant current mode output
Meatal housing with class 1 design
Standby power consumption <0.5W at remote off
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off)
Typical lifetime > 62000 hours
7 years warranty
Applications
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type “HL” for use in Class 1, Division 2 hazardous (Classified) location.
Description
HLG-600H series is a 600W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-600H operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 96%, with the fanless design, the entire series is able to operate for -40℃ ~+90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-600H is equipped with various function options such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
