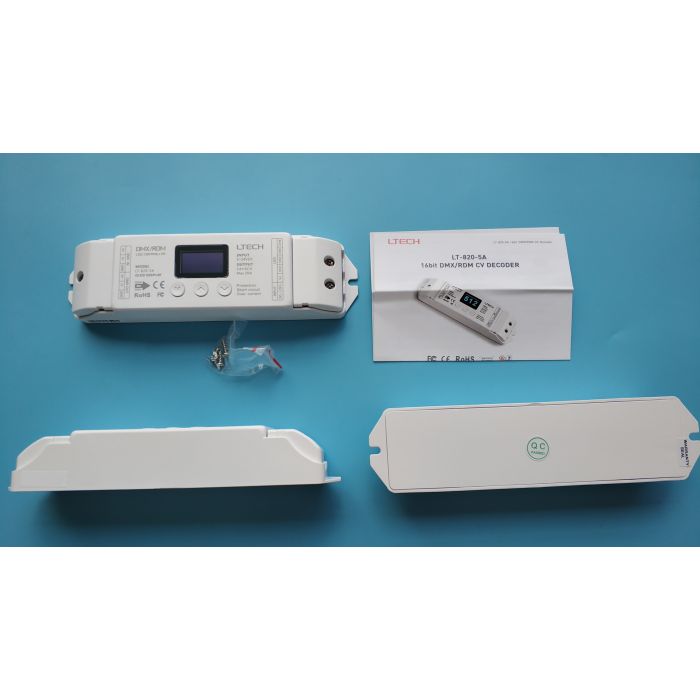

LTech LT-820-5A 4 channels RGBW LED DMX decoder
- Buy 30 for $45.95 each and save 6%
Made in Zhuhai of China, reliable quality, we are the distributor of LTech controllers
Direct from factory, good price
RGBW quad colors control
The 4 channels DMX512 RGBA or RGBW decoder will drive any of our RGB flexible strip lighting with the added advantage of driving a fourth channel of either white or amber.
OLED real time display
16 bit or 8 bit input
3 dimming curve optional
Frame rate is as high as 850 FPS
Built-in protection circult of resistance to lightning stroke and ESD static electricity
Click here to check the detailed manual of this 4CH DMX decoder
Decode channel: 4 channels
Input signal: DMX-512
Output signal current: 20A
Power supply: DC 5~24V
Power: 4CH×5A
Power Output: 100W(12V)/240W(24V)480W(24V)
Operating temperature: -30°C~55°C
Size: L175×W44×H30(mm)
Click here to check the detailed manual of this 4CH DMX decoder
The 4 channel DMX decoder controls up to 4 different 12 VDC LED products or any one RGBW LED Light bar or strip. DMX address is easily set using push button switches under the display. Receives DMX-512 digital control signals via 3 wires terminal strip connection. DMX decoding driver converts universal DMX512 digital signal to PWM signal, which can be controlled by DMX512 console with 8-bit/16-bit gray scale output per channel. Maximum load 5 Amps per channel - 20 Amps total. Available DMX starting channel 001-512.
Connect with RGBW LED strip diagram
