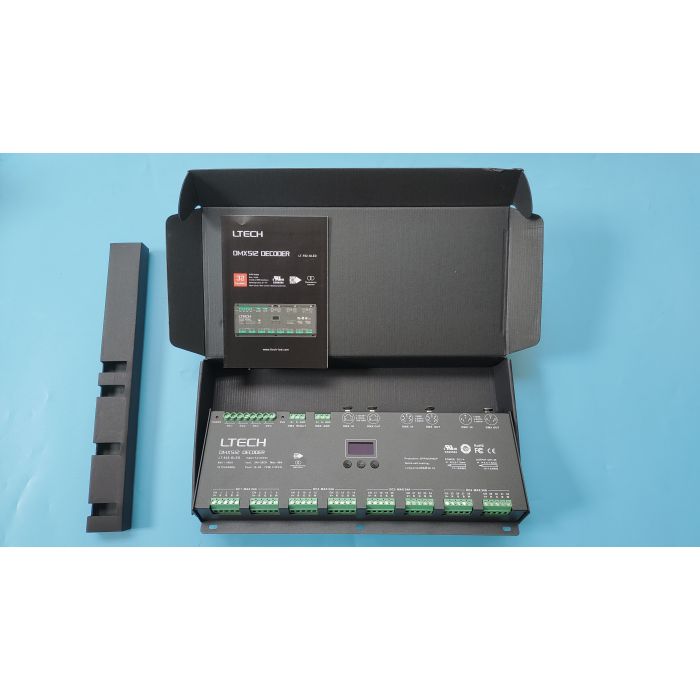

LTech LT-932-OLED 32 channels constant voltage DMX decoder
- Buy 32 for $149.00 each and save 5%
- Buy 100 for $139.00 each and save 11%
Made in Zhuhai of China with 5 years warranty, genuine version, high quality, not cheap copycat
We are the distributor of LTech products, directly from factory, good price
LTech LT-932-OLED features
Designed for Hi-power multiple channels application, 32 channels output, and maximum 3A current per channel, up to 2304W output power
Easy operation with OLED screen and touch buttons.
4 kinds of mode optional: single color, color temperature, RGB and RGBW.
Support 4 kinds of DMX ports with signal isolation function: 3-pin XLR, 5-pinXLR, RJ45 and green terminal (with signal amplifier function).
With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing&setting, DMX address setting, equipment recognition, etc.
With firmware upgrade function.
With short circuit, over current and over-heat protection, as well as warning function when fault.
With power-on state management and fast self-testing function.
16bit (65536 levels) / 8bit (256 levels) grey level optional.
Optional for standard, linear, LOG or custom 0.1-9.9 dimming curve.
Model : LT-932-OLED
Input Signal : DMX512/RDM
Input Voltage : DC 12~24V
Current Load : 3A × 32CH Max 96A
Output Power : (0~36W...72W) × 32CH Max. 2304W
DMX Interface : 3-pin XLR, 5-pin XLR, RJ45, Green terminal
Control Mode : Dimming/CT/RGB/RGBW
Dimming Curve : 0.1~9.9
Grey Level : 8bit (256 levels) / 16bit (65536 levels)
Photoelectric Isolation : Yes
Protection: Short circuit / Over current / Over-heat
Working Temperature: -30°C~65°C
Dimensions: L300×W122×H39mm
Package Size: L313×W127×H41mm
Weight (G.W.) : 1180g
