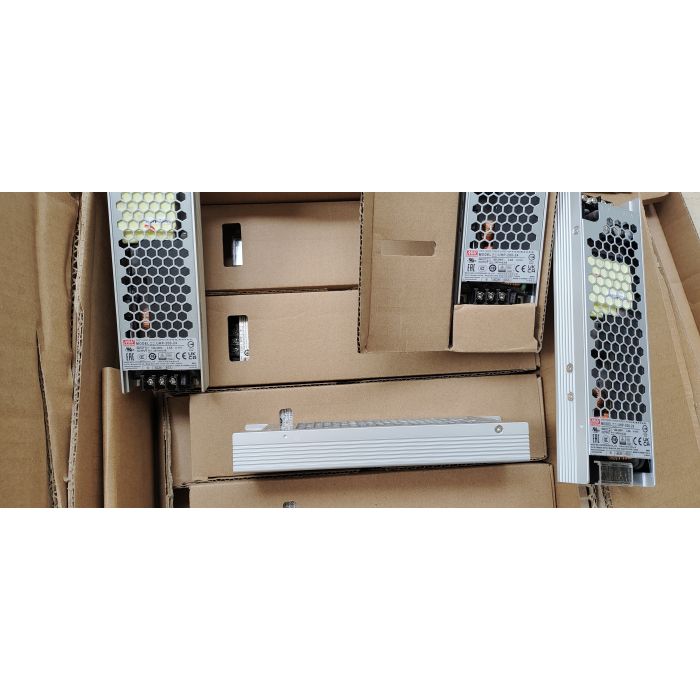

Mean Well UHP-200 slim type with PFC switching power supply

$62.50
In stock
SKU
2954
  • Buy 16 for $58.95 each and save 6%
  • Buy 96 for $56.75 each and save 9%

Made in China with 3 years warranty, genuine version, high quality, not cheap copycat

We are the distributor of Mean Well products, directly from factory, good price

Click here to know more detailed information about Mean Well UHP-200 switching power supply



Mean Well UHP-200-12 is default version, UHP-200-3.3, UHP-200-4.2, UHP-200-5, UHP-200-15, UHP-200-24, UHP-200-36, UHP-200-48 is optional



Feature

Slim and Low profile (26mm)

Fanless design, 200W convection

Withstand 300VAC surge input for 5 seconds

Built-in active PFC function

-30 ~ +70°C working temperature

150% peak load capability (100ms)

Protections: Short circuit / Overload / Over voltage / Over temperature

DC OK active signal

Operating altitude up to 5000 meter

LED indicator for power on

3 years warranty



Applications

Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipment or apparatus

Household appliances

LED display application



Description

UHP-200 series is a 200W single-output slim type power supply with 26mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 94%, that the whole series operates from -30°C~ 70°C under air convection without fan. UHP-200 has the complete protection functions and 5G anti-vibration capability; It is complied with the international safety regulations such as TUV EN60950-1, EN60335-1, UL60950-1 and GB4943. UHP-350 series serves as a high performance power supply solution for various industrial applications.
