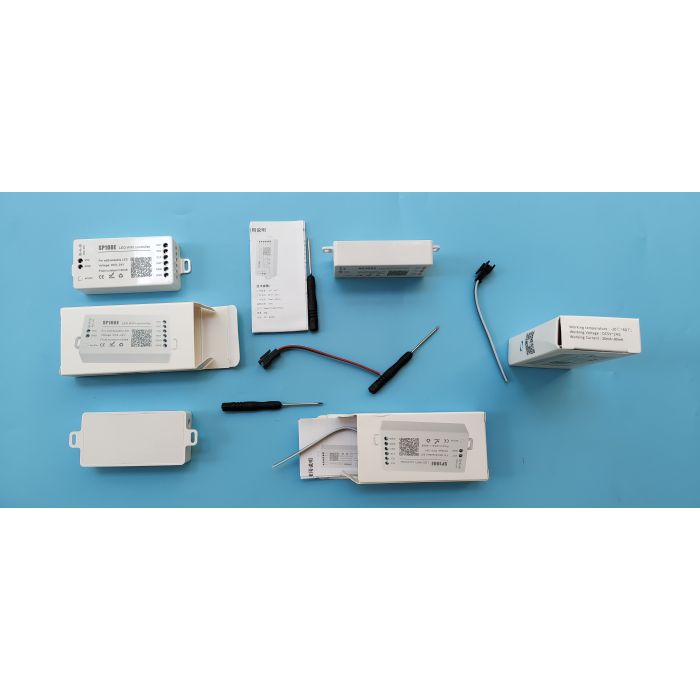

SP108E WiFi LED addressable programmable SPI controller

$14.25
In stock
SKU
5360
  • Buy 100 for $12.95 each and save 9%

Made in China with reliable quality

We are distributor of LED controllers, direct from factory, good price



Model Number: SP108E

Type: Remote Control

Max. Load Power: 1-5W

Voltage: DC 5V-24V

Support IC: WS2811/WS2801/UCS1903/SM16716/LPD6803/LPD8806/LPD9813 etc.

Remote distance: 30 meters

Product name: SP108E WiFi magic controller

Support Pixels: 2048 pixels maximum

Control: Wi-Fi controller

Size: 3.4 x 1.8 x 0.9 inches / 85mm*45mm*22mm

Please note:  One time you only can control one SP108E wifi controller. If you want to control the second one, you have to disconnect the first one and connect the second one.



SP108E Wi-Fi led controller operating instructions
WiFi Group control:  Sync multiple SP108E's together even if the led strips are in Different areas. It only works with a 2.4G WIFI network. DON’T use 5G WIFI network. IOS 10/Android 4.4 or later version.

Wide Compatibility:  Support almost LED IC, such as WS2811,WS2812B, WS2801, SK6812, SK6812-RGBW, WS2813,SK9822,APA102,WS2818, LPD6803, LPD8806, TM1913, UCS1903, SM16703, DMX512,etc. (DO NOT control 5050RGB or RGBW led strip which has no IC )

Rich Color Modes:  180 kinds of multi-color dynamic modes, 8 kinds of single color modes such as a meteor, breathing, wave, catch-up, stack, flash, flow, static. Color, brightness, and speed are adjustable.

Capture the image’s color you like:  The WiFi controller features a creative from-image-to-effect function. It can capture the color of the image, create the distinctive color effect and synchronize light color with the atmosphere of your room.

User-friendly design:  MAX 2048 pixels (Recommend 1500Pixels)in total. Save user settings when power off. DC 5V/DC12V/24V wide working voltage; reverse connection protection; hot-swap protection



APP control

1.support system Andrioid OS system WIFI hardware support

2.Requires IOS version 10.0 abover

3.Requires Android OS version 4.4 abover

4.Search "LEDShop" in APP store or Google PLay or scan this QR code to download and install the APP



Specificatiopns

1.working temerature:-20°C——60°C

2.working Voltage: DC5V——24V

3.working Current:20mA——130mA

4.Remote distance:30 Meters

5.Product size: 85mm*45mm*22mm

6.Product weight:40g

7.Certificates:CE,ROSH



Working Mode

A.AP(Access Point) mode: Controller and Phone connect directly, the controller works as an access point.

1. Go to your phone Settings, find and connect the controller(named like SP108E_XXX, the default password is 12345678);

2. Open the LED Shop App, then the controller will be shown on the device list;

B.STA(Station) mode: Controller and phone are in one same WiFi network, in this network, users can operate the controller smoothly.



There are two ways to configure the controller into the local WiFi network:

SmartConfig Automatic Mode (This mode requires your phone has connected to a 2.4GHz WiFi)

1. Make sure your phone is connected to a WiFi network, pressing the Add Device button;

2. Input your WiFi password, pressing the next step and select Automatic mode, long-press the button of the controller until the LED indicator flash green; 3. Pressing the OK to confirm and wait for the configure processing finish;

4. After the configuration is finished, the LED indicator will turn into solid green, drag to refresh the device list, and the controller will be shown on the device list.

Manual Configure Mode (This mode requires your phone has connected to a 2.4GHz WiFi or has connected to a 2.4GHz&5GHz combined WiFi network)

1. Make sure your phone is connected to a WiFi network, pressing the Add Device button;

2. Input your WiFi password, pressing next step and select Manual mode, click the button of the controller to switch the controller to AP mode(the LED indicator will turn into solid blue);

3. Go to your phone Settings, find and connect the controller(named like SP108E_XXX, the default password is 12345678);

4. Go back to the APP and press the next step to start the configure processing; 5. After the configuration is finished, the LED indicator will turn into solid green, drag to refresh the device list, the controller will be showed on the device list.



Removing device: User can select the controller and remove it out of the network by pressing the Remove Device button on the APP, or just click the button of the controller to switch the controller into AP mode.


Supported chip

WS2811、WS2812、WS2813、WS2815 WS2801、SK6812-RGB、SK6812-RGBW、SK6812-WWA、LPD6803、LPD8806、UCS1903、UCS9812、APA102、APA104、TM1803、TM1804、TM1809、TM1812、TM1914、SM16703


Support  IC  (Support WS2813 WS2815 WS2818 chips)



How to set up the controller?

The first method to connect the controller.

Search "LED Shop" in the app store or scan the QR code on the box. Install the app on your smartphone or Tablet.

The first method to connect the controller. The controller works as an access point. Open wifi setting page of your cellphone, find and connect the controller (named SP108E_xxx, the default pin code is 12345678).



The second method to connect the controller.

Turn off the power of the controller. Wait for 1 minute.

Connect your phone to your wifi network, open LED Shop APP.

When the controller is not connected to any WIFI network, power on the controller, the controller will remain in Wait-For-Connect mode for 20 seconds;

Within the 20 seconds, press the Add Device button, input the WIFI pin code, press the OK to confirm. Then wait for the configure processing finished;

When the controller successfully enters the WIFI network, it will be shown on the device list. ( Choose one of the two connection methods)

Set R/G/B sequence, make it synchronizes with your lamp.

Choose the IC type, making it the same with your lamp

Set pixels number of each section.

Set a number of sections. The total pixels should be no more than 2048.



How to connect the WS2813 WS2815 WS2818 led strip lights

how to connect WS2813 WS2815 WS2818
