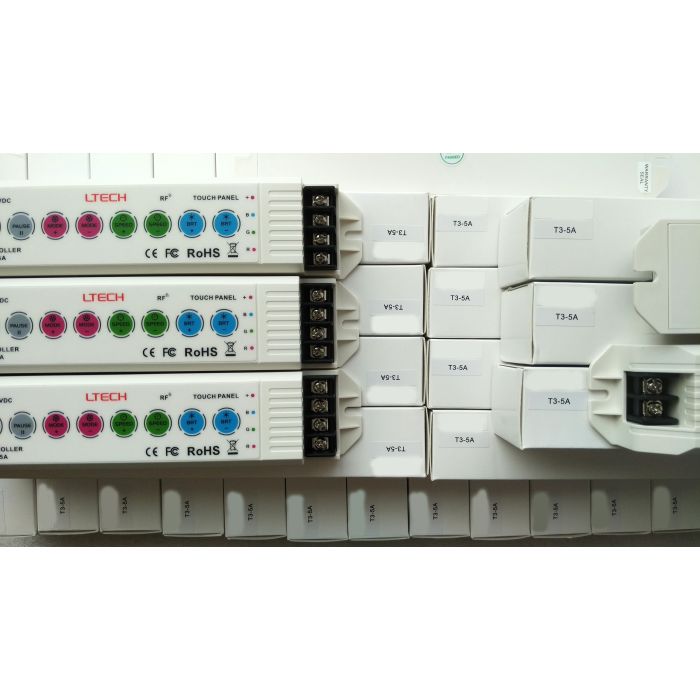

LTech T3-5A 2.4GHz RF wireless RGB LED receiver controller
- Buy 32 for $28.95 each and save 9%
Made in Zhuhai of China, reliable quality, genuine version, not copycat
Direct from factory, good price, we are the distributor of LTech controllers
DC 12~24V safe low working voltage
RGB triple colors control
The T3-5A LED RGB controller is a stand-alone controller, which can control RGB LED flexible strips of either 12 or 24 VDC. You can also buy the T3M RGB Remote to pair that with your T3-5A RGB LED controller to perform controller remote.
Power supply chosen: DC 12~24V
Max current load: 5A x 3CH maximum 15A
Change mode: 32 fantastic modes
Control button: 8 touch buttons
Grey scale levels: 1024 x 1024 x 1024
Unlimited sync quantity: no quantity limit
Working temperature: -30°C - 55°C
The T3-5A LED RGB controller is compatible with the T3M RF control remote. Using the most advanced 2.4G Hz RF wireless transmission technology, one remote can realize the signal synchronization on unlimited LED RGB Controllers within a 30 meter distance (98 feet). It can be used with either 12V or 24V color changing LED tape light. Featuring 32 changing modes with smooth changing effects and no flicker on the LED light. Unique full-color circle touch control technology, 8 touch keys on the controller, you can select the functions of switch, pause, changing modes, speed and LED brightness.
Use the T3-CV RGB LED Receiver to control that roll, then pair the T3-CV with your T3-5A and your set. The T3-5A RGB LED controller will control and both rolls of flex strip. Need more strips? No problem, keep adding and pairing as many T3-CV’s as you need.
T3-5A wiring diagram
