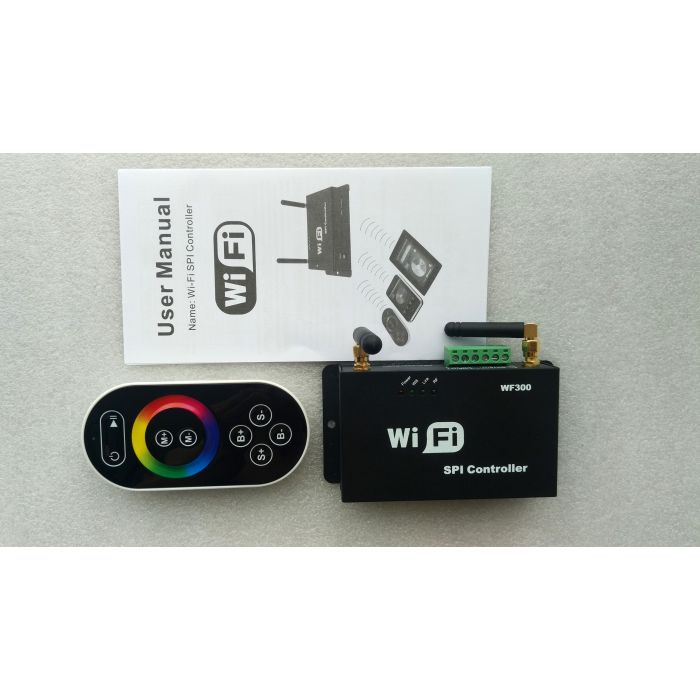

WF300 iPhone Android WiFi control digital SPI RGB LED controller

$19.95
In stock
SKU
1132
  • Buy 100 for $18.75 each and save 6%

Click here to download the WiFi app for Android

Click here to download the user manual

This WF300 controller can work with addressable intelligent RGB LED lights, excellent performance with powerful functions

Made in Shenzhen, reliable quality

direct from factory, good price



Click here to download the WiFi app for Android

Click here to download the user manual



WF300 LED-WiFi controller is following the traditional with infrared, RF technology controller foundation, it is birth of market and customer's demand, it is one type controller which integration the newest WiFi technical in the market. It makes the LED control more convenience, more hommization. We can use an Android system or iOS system mobile phone to install control software, then it can control LED, this is the wishes of every customer.

Use WiFi technology can make our control range more wider, can get rid of narrow space constraint, in building can control more than 50m, in outdoor can control more than 100m.

In the condition of not use the mobile software, also can use the remote control to control, very convenience, bring many choices for you.



1. Remote control technical parameters

1: Working temperature: -20~60°C

2: Power supply method: AAA*3

3: Supply voltage:1.5V*3

4: Standby power: 0.015mW

5: Standby current: 3uA

6: Working current: 200uA

7: Emission current: 10mA

8: Remote control distance: about 50 meters

9: Standby time: 6 months



2. Software technical parameters

1: Name: Dream Color

2: Runtime platform: Android version support Android system(better one can support Samsung,

HTC), IOS version support IOS system, equipment must have WiFi function.

3: Language: English

4: Category: communications

5: Free, green, no plug-ins

3. Controller technical parameters

1: Working voltage: DC 5~24V

2: Output control: SPI signal output

3: Output current: 4A*3

4: Connect mode: SPI signal wires(DATA, CLK)

5: External dimension: L107*W65*H30(mm)

6: Receiving sensitivity: 802.11b DSSS(-5dBm),802.11b CCK (-10dBm),802.11g

OFDM(-15dBm)

7: Support IC type: LPD6803/UCS1903/WS2801/WS2811/TM1803/TM1809/TM1812/TLS3001/TLS3008/P9813





9mm through-hole WS2811 RGB LED pixel node light string and WF300 SPI RGB LED controller



9mm through-hole WS2811 RGB LED pixel node light string and WF300 SPI LED controller



9mm through-hole WS2811 RGB LED pixel node light string and digital WF300 SPI LED controller
