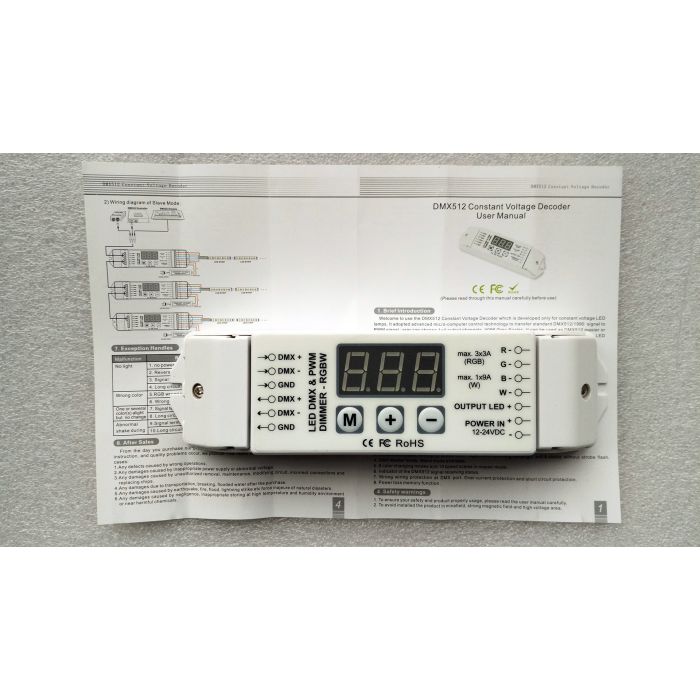

4 channels output constant voltage DMX512 decoder with display

$29.95
In stock
SKU
1824
  • Buy 100 for $27.95 each and save 7%
  • Buy 1000 for $25.95 each and save 13%

Made in Zhuhai of China, direct from factory, high quality

Click here to download the manual

Features

1. Automatically adapts input voltage DC 12-24V

2. Input standard DMX512 signal; 3-digital-display shows DMX address code

3. 4 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft& stable without strobe flash

4. DMX master mode, slave mode available

5. 8 color changing modes and 10 speed scales in master mode

6. Indicator of the DMX512 signal receiving status

7. Wrong wiring protection at DMX input port. Over current protection and short circuit protection

8. Power loss memory function



Input voltage: DC 12-24V

Max load current: RGB: 3A×3CH W: 9A×1CH

Max output power: RGB:36W×3CH W:108W(12V) / RGB: 72W×3CH W: 216W(24V)

Grey scale: 4096 levels×4

Input signal: DMX512/1990

Output signal: constant voltage PWM×4

Decode channel: 4CH

DMX512 socket: terminal block

Dimension: L176×W46×H30(mm)

Weight (G.W): 175g

Certifications: FCC, CE, RoHS
