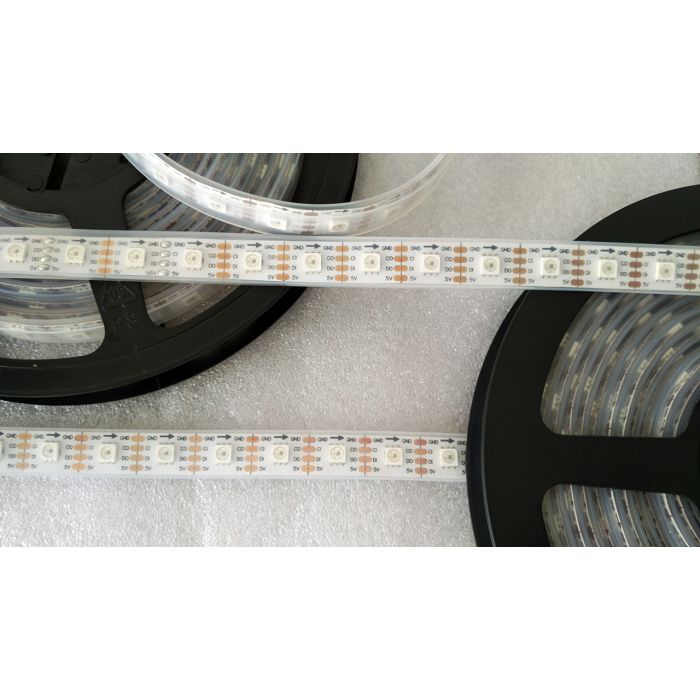

5 meters 360 LEDs 5V programmable SK9822 RGB 5050 LED strip

IC type: SK9822, compatible with APA102

IC quantity: 72 per meter, total is 360

Light source: RGB 5050 LED

LED quantity: 72 per meter, 5 meters, total 360 LEDs

Grey scale: 256 levels

Power: 0.24W per LED

Working voltage: DC 5V

Beam angle: 120 degrees

FPC: black or white color, 12mm width

Length: 5 meters (16.4 feet)

Protection rate: IP20 non-waterproof is default, IP65 glue waterproof, IP67 silicone tube waterproof and IP68 are optional

Operating temperature: -20~+45 C

Certification: CE, RoHS

Programmable dream color SK9822 LED strip, brand new SMD LED type SK9822, this is similar to the WS2801 chip.

SK9822 for the three-color RGB LED dimming control IC, using the CMOS process, providing three-color RGB LED output driver to adjust the output with 256 gray-scale with two-output way, the CLK signal by synchronization, so that the crystal cascade piece of output movements synchronized.

Advantage with this LED, the chip has already been installed in the LED similar to LED WS2812B.

The LEDs have a clock IN and data IN connection, and the corresponding outputs for the next LED.

The SK9822 LED has a slightly different response than the WS2801 chip, this should be considered when programing

Applications:

1) Light up colorful home life, DIY household lights for hallways, stairs, trails, windows.

2) Hotels decoration use, theaters, clubs, shopping malls, festivals and performances use.

3) Architectural decorative lighting, archway, canopy and bridge edge lighting, security lighting and emergency.

4) Extensively applied in backlighting for signage letters, concealed lighting and advertisement sign lighting.

5) Applicable for automobile & airplane model decoration, contour lighting or border.
