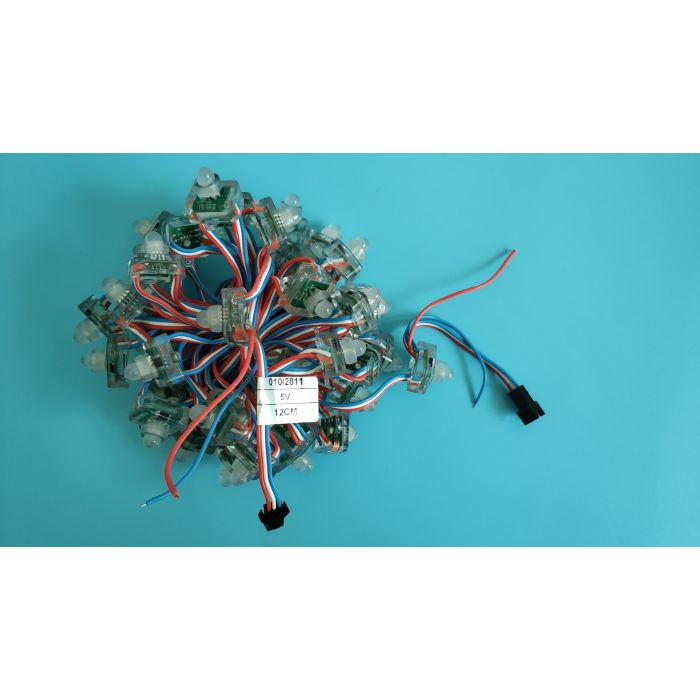

5V 50 nodes rectangular IP68 WS2811 RGB LED pixel module light
- Buy 10000 for $7.95 each and save 9%
Model: LM-WS2811
intelligent programmable WS2811 IC, RGB color, 256 scales, this string has 50 node pixels, excellent performance
DC 5V working voltage, safe assurance
made in Shenzhen, reliable quality with 2 years warranty
We are professional on LED light products, you can customize with special requirements. For any questions on product specifications, production time or shipping methods, please feel free to contact us
Specification
Working voltage: DC 5V
Working current: 60 mA
Working consumption: 0.3W
Working temperature: 40°C~ 60°C
Protection grade: IP68 waterproof
Dimension: 25*18.5*22mm
LED type: 1pcs strawhat
LED quantity: 1pcs
Viewing angle: >90 degrees
Lifespan: MTBF>50000 hours
Feature
Programmable by software
Individually control
Conformal coating, PVC glue protection
IP66 waterproof protection
Easy installation (punching 12mm hole on metal panel)
50pcs per string
Applications
Meets the general lighting, environment such as: outdoors advertising, Christmas decoration
RGB pixels are digitally controllable lights you can set to any color, or animate.
Each RGB LED and controller chip is molded into a 'dot' of silicone, the dots are waterproof and rugged.
There are four flanges moulded in so that you can 'push' them into a 12mm drill hole in any material up to 1.5mm/0.06" thick.
They are typically used to make outdoor signs. Compared to our other 20mm LED dots.
These are diffused 8mm LEDs so they are not as bright but they color mix a little nicer.
A 3-conductor cable connects the pixels.
Each dot is digitally controlled, with an internal 5-bit PWM LED driver (15 bit color for 32,768 different shades). The pixels must be clocked by a micro controller.
The pixels use 8mm diffused RGB LEDs with brightness of about 300 mcd per individual R/G/B LED.
