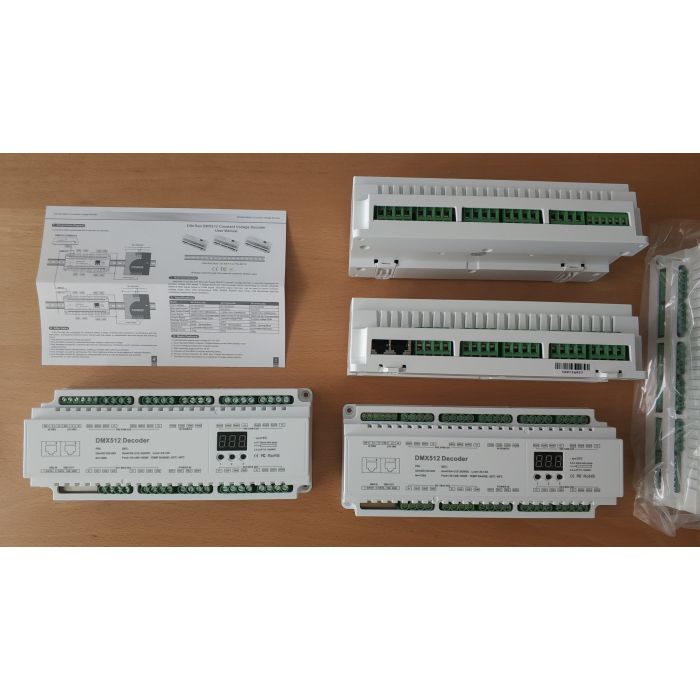

BC-624-DIN rail 24 channels CV DMX512 decoder

$69.75
In stock
SKU
2845
  • Buy 20 for $54.95 each and save 21%

24 channels DMX512 / 1990 protocal support

We are the distributor of Bincolor products, directly from factory, good price, genuine version, not cheap copycat

Click here to view the detailed specifications of BC-632-DIN



Welcome to use the DIN Rail high Power DMX512 constant voltage decoder is specially developed for constant voltage LED lamps. It adopts advanced microcomputer control technology to convert universal DMX512/1990 digital signal to PWM signal. 24 output channels, can be used to control constant voltage single color, color temperature, RGB, RGBW, RGBWY type lamps. DIN Rail/screw dual-use installation method for easy installation.



Feature function

1. Automatically adapts input voltage DC12V-24V.

2. Input standard DMX512 signal; 3-digital-display shows DMX address code.

3. 6 color changing modes and 10 speed scales.

4. DMX decoding supports 8-bit,16-bit.

5. Indicator of the DMX512 signal receiving status.

6. Wrong wiring protection at DMX port.Power loss memory function.

7. The DIN rail style facilitates the installation of large-scale projects.



Product parameter

 Model

 BC-624-DIN

 Input voltage

 DC12V-DC24V

 Maximum load current

 24A×5CH

 Maximum Output Power

 1440W (12V) / 2880W(24V)

 Input Signal

 DMX512/8 bit/16 bit selectable

 Output Signal

 Constant Voltage PWM

 Decode Channel

 32CH

 DMX512 socket

 RJ45、Terminal Block

 Dimension

 L218×W90×H58.5(mm)

 Weight (G.W)

 483g
