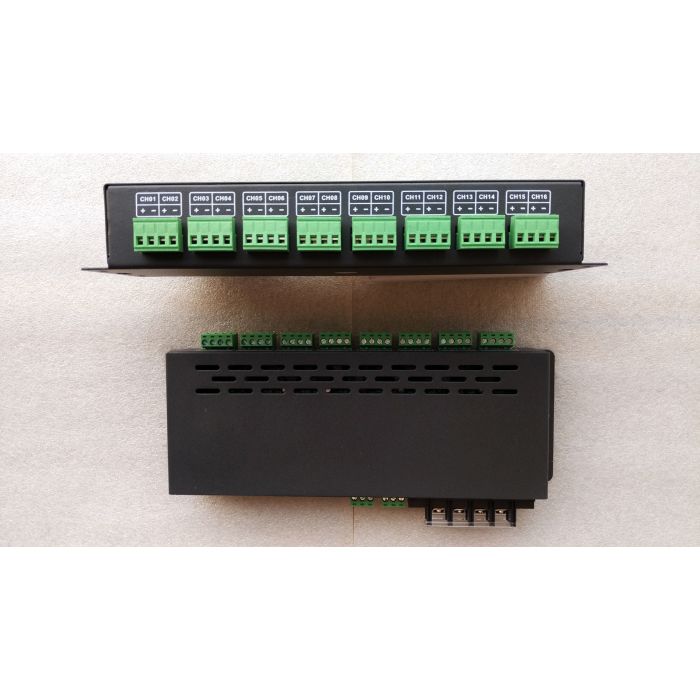

LTech LT-880-350 contant current 350mA 16 channels DMX-PWM decoder
$119.00
In stock
SKU
2094
- Buy 31 for $109.00 each and save 8%
Made in Zhuhai of China, reliable quality with 5 years warranty, genuine version, not copycat
Direct from factory, good price, we are the distributor of LTech controllers
DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to CC/CV PWM signal to drive LED, which controlled by DMX512 console, realize 0-100% brightness or various changing effect. And can control single color, dupi-color, RGB, RGBY, RGBW, RGBA LED lights.
Outstanding performance.
16-bit dimming curve.
Frame rate is as high as 850 frames per second.
Built-in protection circuit of resistance to lightning stroke and ESD static electricity.
|
LT-880-350 16CH DMX-PWM Decoder |
|
| Input signal | DMX512 |
| Input power | DC12V～DC48V |
| Output voltage | DC3V~DC42V |
| Max load current | 350mA ×16CH |
| Output power | 1.05W~14.7W×16CH Max 235.2W |
| DMX512 socket | XLR-3, Green terminal (with signal amplification function) |
| Dimming range | 0~100% |
| Working temperature | -30℃～65℃ |
| Dimension | L260×W123×H42mm |
| Package Size | L268×W127×H44mm |
| Weight (G.W) | 950g |
