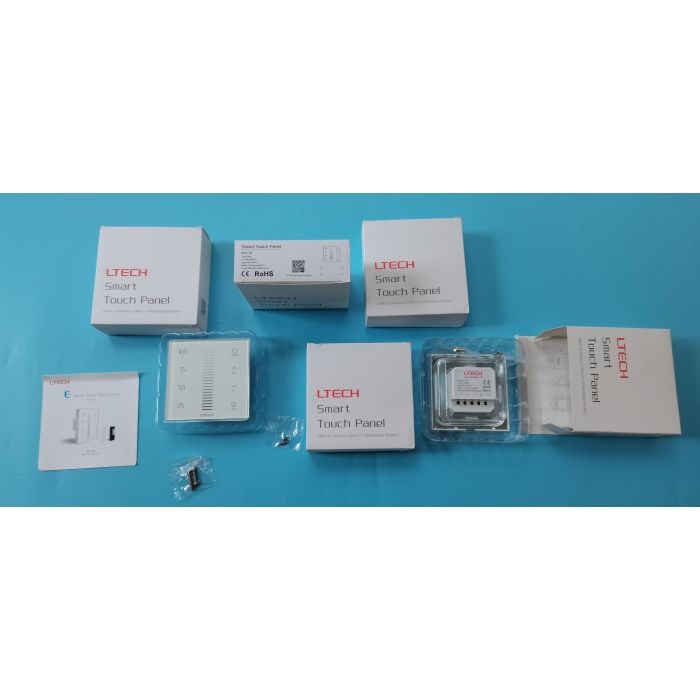

LTech E1S-TD power RF touch panel LED dimming controller
- Buy 51 for $27.75 each and save 7%
- Buy 101 for $26.95 each and save 10%
Made in Zhuhai of China, CE, RoHS and FCC certificated, reliable quality with 5 years warranty
We are the distributor of LTech products, direct from factory, good price
Click here to view the detailed information about LTech E1S-TD
LTech E1S-TD
Product features
2 in 1 function: RF wireless control and touch panel control.
Trailing edge signal output, lamps can be connected directly, easy and convenient.
Touch keys with chord and LED indicator.
Adopts capacitive touch control technology on the full color slider, makes LED color selection more user-friendly.
Touch panel can be controlled by remote directly or smart phone if add a gateway.
Technical specifications
Input Voltage: 100-240Vac
Frequency range: 50/60Hz
Dimming mode: Trailing edge (ELV)
Wireless Frequency: RF 2.4GHz
Working current: Max. 1A
Load power: Maximum 200W
Load inrush current: Max. 60A
Working Temp.: -20°C~55°C
Dimensions: L86×W86×H36(mm)
Package Size: L113×W112×H50(mm)
Weight(G.W.): 225g
