LTech LM-150-24-G2A2 constant voltage 0-10V LED dim&CT control driver
- Buy 1000 for $28.25 each and save 5%

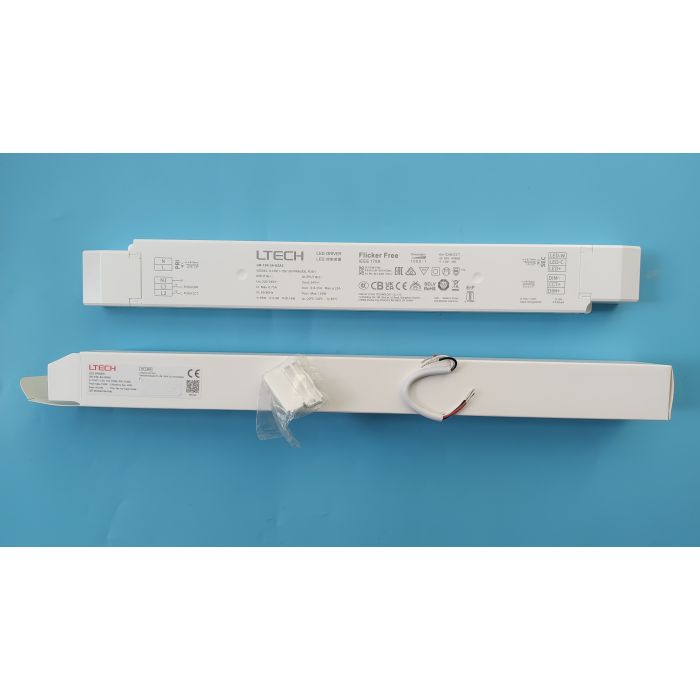

LTech LM-150-24-G2A2
5-in-1 DIM & CT LED intelligent control driver
made in Zhuhai of China with high quality
We are the distributor of LTech products, directly from factory, good price
LTech LM-150-24-G2A2
Dimming interface: 0-10V(1-10V/10V PWM/RX), Push DIM/CCT
Dimming interface with photoelectric isolation, in line with the latest safety standards, more safe and reliable.
0-10V DIM and color temperature adjusting driver, 2 independently SELV constant voltage output channels.
Constant power design, adjust different color temperature to keep the same brightness.
Dimming range from 0-100%, LED start at 0.1% possible.
With soft-on and fade in function, visual more comfortable.
Color temperature adjusting range: 2700-6500K
Automatic recognition of 0-10V, 1-10V input signal.
0~100% flicker-free, High frequency exemption level.
High efficient driver: efficiency 93%, PF>0.98, THD<6%.
In line with the EU energy efficiency ERP directive, standby power consumption < 0.5W
Innovative thermal management technology, intelligent power life protection.
Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
Fully-protected plastic housing with design of dismountable end cover.
Suitable for indoor I/II/III type lamps application.
5 years warranty (Rubycon capacitor).
