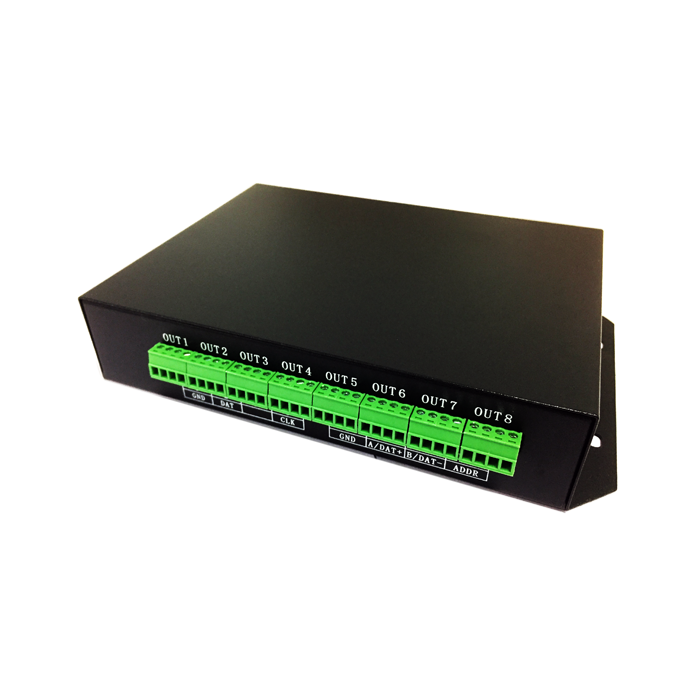

T-400K programmable digital SPI master LED pixel controller

T-400K System features

1. 32-65536 level gray control, software gamma correction processing.

2. support a variety of point, line, surface light source, support a variety of rules, special-shaped processing.

3. using the main control and sub-control control mode, the playback effect is stored in the SD card of the main controller (offline player), as long as the main control card is inserted in the same project,

The sub-control does not require a card, and the replacement effect is more convenient. The main control and sub-control, sub-control and sub-control are serial, no need to broadcast code.

4. a master control (offline player) maximum load *** set of sub-control or maximum load ** 10,000 points; main control and sub-control, sub-control and sub-control between RJ-45 pass Interface, the maximum cascading distance is 100 meters.

5. each sub-control 8 ports, each port can be equipped with a maximum of 768 pixel lights, the main control can not be lighted.

7. When the DMX lamp is loaded, the main control can perform one-click address writing for all the sub-control lamps. For details, please refer to our 2016 LedEdit-K V3.26. One-click address function of the version software.

8. Enhanced TTL and 485 differential signal output, compatible with single, dual-line and DMX IC controllers. When connecting single-line IC lamps, there is no need to connect CLK clock lines.

Signal output (TTL/245):

GND: GND (negative)

DAT: data

CLK: clock

Signal output (DMX512 signal):

GND: GND (negative)

A/DAT+: signal is positive

B/DAT-: signal is negative

ADDR: address write line

Indicator lights

Power: power indicator (always on after power-on)

Status: status light (off during normal operation)

Act in cascade signal input (strobe when there is signal input)

Act out cascade signal output (strobe when there is signal output)

Physical parameters

Working temperature: -30 ° C - 85 ° C

Working power: AC100-240V input

Power consumption: 5W

Weight: 1.5KG with outer packaging (4-pin terminal block*8, power cord*1, paper box*1)

Output type: 4 pins terminal block

Support Chips:

Controller dimension

Wiring connection diagram
