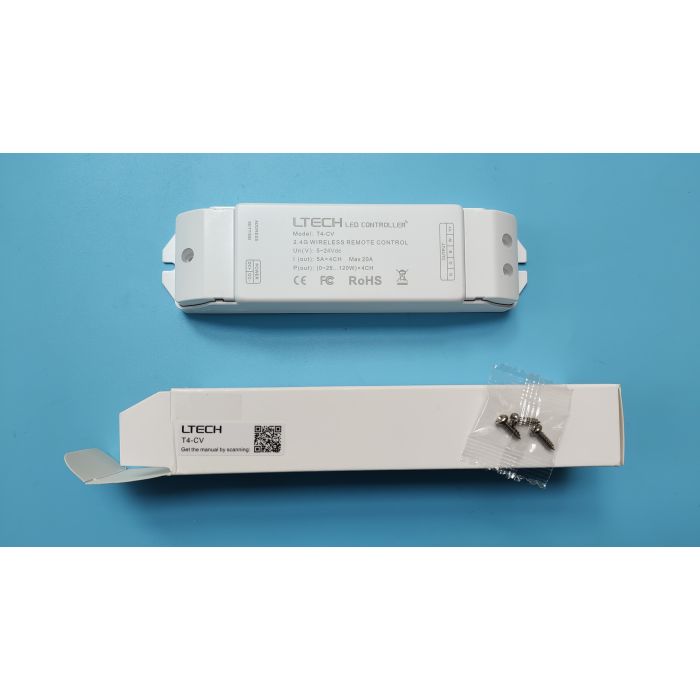

LTech T4-CV wireless RGBW LED synchronization receiving controller
$32.50
In stock
SKU
2091
- Buy 30 for $29.75 each and save 8%
Made in Zhuhai, reliable quality with 5 years warranty, genuine version, not copycat
Direct from factory, good price, we are the distributor of LTech controllers
RGBW color control, support T4 control remote
T4-CV cann't work as stand-alone unit, you need to buy T4 control remote to complete the system.
Brief introduction
T4-CV RGBW LED receiver can control RGB LED flexible strips of either 5, 12 or 24V DC. A number of T4-CV’s can be used simultaneously so as to have multiple rolls RGBW LED flexible strips in the same setup.
Product parameter
| Input voltage | DC5V(Built-in Lithium battery) |
| Working current | ≤30mA |
| Working frequency | 2.4GHZ |
| transmitting distance | 30m |
| Remote option | sync or zone or programming control |
| Gray scale level | 4096×4096×4096 |
| Battery capacity | 1000mAh |
| Working temperature | -20℃～55℃ |
| Dimension | 145×W55×H22mm |
| Package Size | 168×W102×H28mm |
| Weight (G.W.) | 200g |
|
T4-CV CV Receiving controller |
|
| Input voltage | DC5V-DC24V |
| Max current load | 5A×4CH Max 20A |
| Max output power | 100W/240W/480W(5V/12V/24V) |
| Compatible remote control | workable with T4 remote control |
| Working temperature | -30℃～55℃ |
| Dimension | L175×W44×H30mm |
| Package size | 178×W48×H33mm |
| Weight (G.W.) | 150g |
|
T4-CC CC Receiving controller |
|
| Input voltage | DC12V-DC48V |
| Output voltage | DC3V~DC46V |
| Max load current | CC 350/700/1050mA 3 in 1×4CH |
| Output power | 1.05W~48.3W ×4CH Max 193.2W |
| Compatible remote control | workable with T4 remote control |
| Working temperature | -30℃～55℃ |
| Dimension | L175×W44×H30mm |
| Package size | 178×W48×H33mm |
| Weight (G.W.) | 165g |
RGBW 4 Channel control
T4 is available for RGB and RGBW LED lights.
A single ON/OFF function for White color and also dimming brightness independently.
A single ON/OFF function for White color and also dimming brightness independently.
Humanized touching full color wheel
Remote control adopts the capacitive touch control technology on the full color wheel, make the LED color selection more user-friendly.Unique LED state light for sync change indicated, user can simply know the LED working state from distance by checking the remote control.
2.4GHz RF wireless remote
Adopt 2.4GHZ RF wireless transmission technology, which is applicable for license and patent free worldwide.
More intuitive and visualization for programming
Meanwhile, T4 adding the new programable method, user can easily change a new DIY effects. How the programming so simple!
No wiring needed between the receivers
T4 utilizes advanced RF synchronous control technology,
it doesn't need any synchronous signal lines between all receive controller,Synchronization performance is stable and reliable, a very good solution for the LED project needs sync control wirelessly.
it doesn't need any synchronous signal lines between all receive controller,Synchronization performance is stable and reliable, a very good solution for the LED project needs sync control wirelessly.
No more than 8 zones
T4 can support no more than 8 zones, one remote control can independent control the receiving controller no more than 8 pcs. Controller and the zones number for
one-to-one correspondence relationship, each controller correspond the only zones number .
one-to-one correspondence relationship, each controller correspond the only zones number .
3 spell into 1, use more simple!
T4 integrates ever T3、T3M、T3X three all functions, use more simple.
