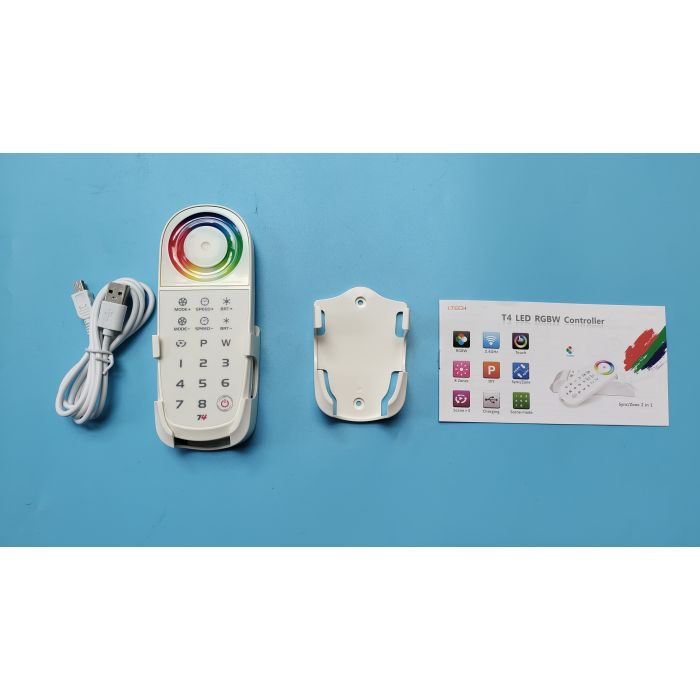

LTech T4 RF wireless synchronization RGBW LED control remote
- Buy 31 for $29.25 each and save 19%
Made in Zhuhai, reliable quality with 5 years warranty, genuine version, not copycat
Direct from factory, good price, we are the distributor of LTech controllers
RGBW color control, support unlimited synchronization/zone receiving controllers
T4 is a simple and easy way to wirelessly customize and control 5-wire Red-Green-Blue-White 5, 12, or 24 volt DC LED strips or other RGB LEDs. This remote allows you to create and store the perfect ambiance for any occasion. Please note that this controller requires one or more T4-CV or T4-CC receiver to complete the system.
T4 is the 2.4GHZ RF wireless synchronization/zone RGBW controller which adopts LTECH four global initiate technology(two invention patents, two patents of utility), which has the powerful function of most RF remote control can not realize, especially receiver between receiver without any cables can achieve dynamic effect synchronously, bring great convenience for users to install; T4 adopts the function of T3 / T3M/T3X RGB remote control for the past two years by customers like three functions in one, but use more simple.
To feel more features advantages waiting for you!
|
T4 Remote Control |
| Input voltage | DC5V(Built-in Lithium battery) |
| Working current | ≤30mA |
| Working frequency | 2.4GHZ |
| transmitting distance | 30m |
| Remote option | sync or zone or programming control |
| Gray scale level | 4096×4096×4096 |
| Battery capacity | 1000mAh |
| Working temperature | -20℃～55℃ |
| Dimension | 145×W55×H22mm |
| Package Size | 168×W102×H28mm |
| Weight (G.W.) | 200g |
| Input voltage | DC5V-DC24V |
| Max current load | 5A×4CH Max 20A |
| Max output power | 100W/240W/480W(5V/12V/24V) |
| Compatible remote control | workable with T4 remote control |
| Working temperature | -30℃～55℃ |
| Dimension | L175×W44×H30mm |
| Package size | 178×W48×H33mm |
| Weight (G.W.) | 150g |
|
T4-CC Constant Current Receiving controller |
|
| Input voltage | DC12V-DC48V |
| Output voltage | DC3V~DC46V |
| Max load current | CC 350/700/1050mA 3 in 1×4CH |
| Output power | 1.05W~48.3W ×4CH Max 193.2W |
| Compatible remote control | workable with T4 remote control |
| Working temperature | -30℃～55℃ |
| Dimension | L175×W44×H30mm |
| Package size | 178×W48×H33mm |
| Weight (G.W.) | 165g |
A single ON/OFF function for White color and also dimming brightness independently.
it doesn't need any synchronous signal lines between all receive controller,Synchronization performance is stable and reliable, a very good solution for the LED project needs sync control wirelessly.
one-to-one correspondence relationship, each controller correspond the only zones number .
