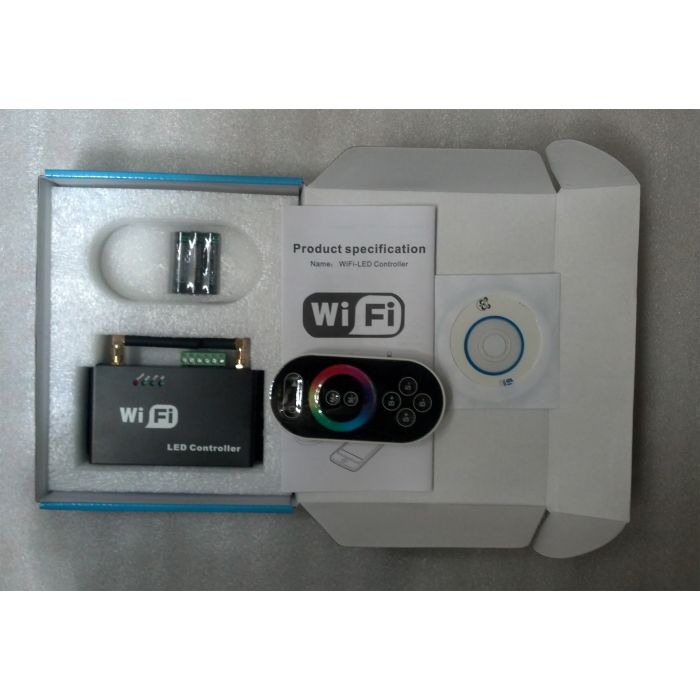

WF100 WiFi wireless iPhone Android RGB LED controller

Clike here to download the PDF manual

LED-WiFi controller is following the traditional with infrared, RF technology controller foundation, it is birth of market and customer's demand, it is one type controller which integration the newest WiFi technical in the market. It makes the LED control more convenience, more hommization. We can use an Android system or iOS system mobile phone to install control software, then it can control LED, this is the wishes of every customer. Use WiFi technology can make our control range more wider, can get rid of narrow space constraint, in building can control more than 50 meters, in outdoor can control more than 100m. In the condition of not use the mobile software, also can use the remote control to control, very convenience, bring many choices for you.

1 Remote control technical parameters

1:Working temperature: -20~60 celsius

2:Power supply method: AAA*3

3:Supply voltage: 1.5V*3

4:Standby power: 0.015mW

5:Standby current: 3uA

6:Working current: 200uA

7:Emission current: 10mA

8:Remote control distance: about 50m

9:Standby time: 6 month

2 Software technical parameters

1:Name:Dream Color

2:Runtime platform: Android version support Android system (better one can support

Samsung, HTC), iOS version support iOS system, equipment must have WiFi function.

3:Byte: Android version(622K)IOS version(581K)

4:Language: English

5:Category: communications

6:Free, green, no plug-ins

3 Controller technical parameters

1:Working voltage: DC 5~24V

2:Output control: can flexible control 3 channel, 2 channel, 1 channel LED lamps.

3:Output current: 4A*3

4:Connect mode: common anode

5:External dimension: L107*W65*H30(mm)

6:Receiving sensitivity: 802.11b DSSS(-5dBm),802.11b CCK (-10dBm),802.11g

OFDM(-15dBm)
