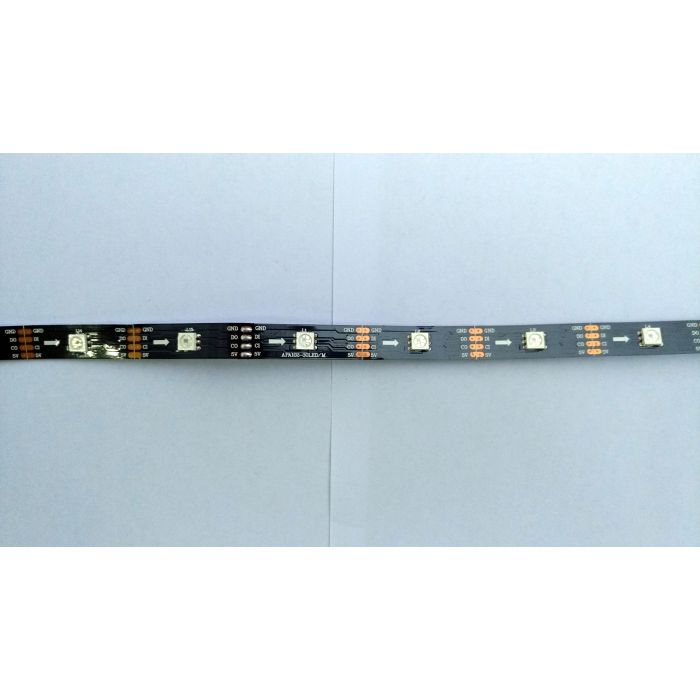

5 meters 150 LEDs 5V programmable SK9822 RGB 5050 LED light strip

IC type: SK9822, compatible with APA102

IC quantity: 30, 5 meters length, total is 150

Light source: RGB 5050 LED

LED quantity: 30 per meter, 5 meters length, total 150 LEDs

Grey scale: 256 levels

Power: 0.24W per LED, total 36W

Working voltage: DC 5V

Beam angle: 120 degrees

FPC: black or white color, 12mm width

Length: 5 meters (16.4 feet)

Protection rate: IP20 non-waterproof is default, IP65 dripping glue and IP67 silicone tube waterproof, IP68 are optional

Operating temperature: -20~+45 Celcius

Certification: CE, RoHS

Programmable dream color SK9822 LED strip, brand new SMD LED type SK9822, this is similar to the APA102 chip.

SK9822 for the three-color RGB LED dimming control IC, using the CMOS process, providing three-color RGB LED output driver to adjust the output with 256 gray-scale with two-output way, the CLK signal by synchronization, so that the crystal cascade piece of output movements synchronized.

Advantage with this LED, the chip has already been installed in the LED similar to LED APA102.

The LEDs have a clock IN and data IN connection, and the corresponding outputs for the next LED.

The SK9822 LED has a slightly different response than the APA102 chip, this should be considered when programing

Applications:

1) Light up colorful home life, DIY household lights for hallways, stairs, trails, windows.

2) Hotels decoration use, theaters, clubs, shopping malls, festivals and performances use.

3) Architectural decorative lighting, archway, canopy and bridge edge lighting, security lighting and emergency.

4) Extensively applied in backlighting for signage letters, concealed lighting and advertisement sign lighting.

5) Applicable for automobile & airplane model decoration, contour lighting or border.
