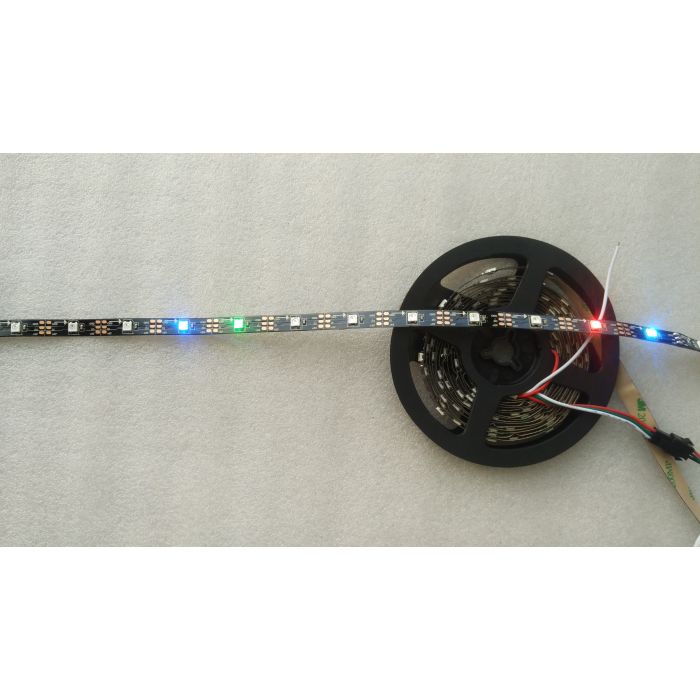

5 meters 150 pixels 5V programmable WS2812B RGB 5050 LED strip

5 meters 5V WS2812B LED pixel strip, 30 pieces WS2812B LED per meter with 30 pixels, reverse protection circuit, high bright WS2812B

Working voltage.............DC 5V

Power.......................7.2 watt/meter, 36 watt/roll

LED resource.............WS2812B LED (5050 SMD  RGB LED with built-in improved version of WS2811 IC)

Quantity of LED...............30 LEDs/meter, 150 LEDs/roll, each LED is separately controlled addressable individually, total 150 pixels

IC type.....................improved version WS2811 IC (built inside the 5050 SMD  RGB LED)

Quantity of IC..................30 IC/meter (1 IC drives 1 LED chip)

Pixels.................. 30/meter

Pitch.........................31.25mm(1000/32)

Grey scale................256

Bits/color...................8-bits/color

FPC size....................Width: 10mm, Height: 2.5mm

FPC color................... black or white

Protection rate.............non waterproof (IP20, default), IP67 silicone tube casing waterproof, IP65 glue waterproof, IP68 silicone tube casing with glue waterproof

Colors........................Full color RGB, dream color changing

Cuttable......................every LED is cuttable

Package: ....................5 meters/reel in anti-static bag, with 3M adhensive tape on the back

WS2812 VS WS2812B

General description

WS2812 family is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. effectively ensuring the pixel point light color height consistent.

The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN port receive data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel,the signal to reduce 24bit. pixel adopt auto resha-ping transmit technology, making the pixel cascade number is not limited the signal transmission, only depend on the speed of signal transmission.

LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life and other advantages. The control chip integrated in LED above becoming more simple circuit, small volume, convenient installation.

Product upgrading

WS2812B is the development and new generation of product based on WS2812.It not only inherited all the good qualities of WS2812 but also improved the IC from mechanical arrangement outside to the structure inside, further enhance the stability and efficiency.

Safety performance comparison

Compared to the ws2812 ws2812b, we add a reverse protection circuit. It will ensure you to reverse connection of power supply without any damage to the product, to increase the stability of the product which in effect.

The mechanical size and pin drawing of WS2812

Through drawing comparison, it is easy to find that the,WS2812B WS2812 consistent in size, but the PAD number of the former are reduced to 4 Pin, with the decrease of the spacing between adjacent legs increases greatly, reduces circuit applications due to some causes problems such as short circuit. an the chip power supply PIN( VDD) and VSS are arranged diagonally, when in PCB layout area of copper foil bearing power, the power and ground can be very wide, power capacity is stronger, the higher the stability.

The brightness is higher

An extrude advantage of is that the RGB chip on WS2812B has a higher brightness and color uniformity than WS2812.

Internal structure improved

WS2812B has a better structure than WS2812, after we modified the structure, the control circuit and the RGB light have been separated, it has a better heat dissipation performance. The two modules work independently, one does not relate to the other, line distance is shorter and makes the work more stable than that of before.
