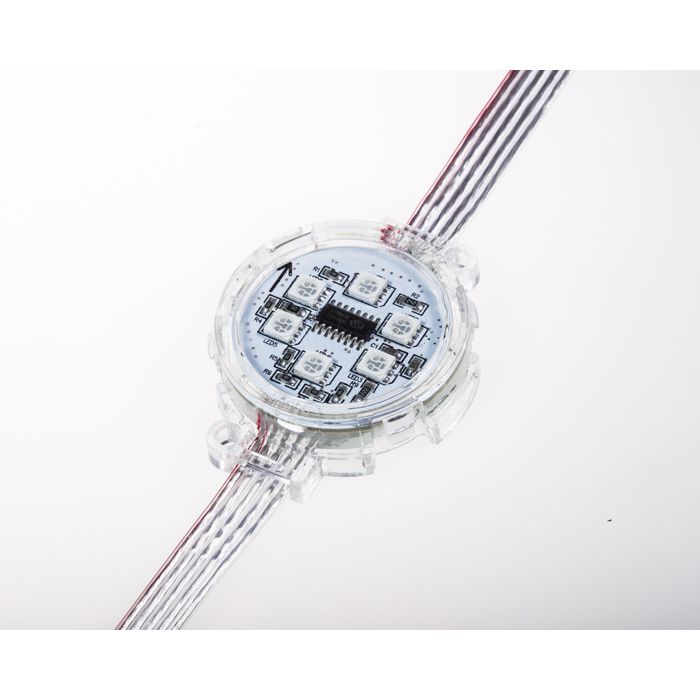

45mm 20 nodes 24V DMX512 RGB 5050 LED pixel point light

In stock
  • Buy 1000 for $25.95 each and save 7%

Maximum 100 characters

DMX512 IC, can be control directly to DMX console, this price includes 20 module node, each node can be individually addressable

DC 12V safe working voltage, waterproof protection

Made in Shenzhen of China, reliable quality with 2 years warranty

We are LED light factory which can supply customized LED light products, for big quantity products, please contact us


1) Voltage: DC 24V

2) IC type: DMX512

3) IC quantity: 1 piece per light, 20 nodes have total 20 ICs

4) LED type: SMD 5050 RGB

5) LED quantity: 3 piece per light, 20 modules have total 60 LEDs

6) Pixel: each module is one pixel, 20 nodes have 20 pixels

7) Max power: 0.72W/piece

8) Bit: 8

9) Greyscale: 256 levels

10) Diameter: 45mm, clear transparent cover dome housing, IP68 waterproof protection

12) Wire length: 200mm



1) Each pixel node can be controlled individually

2) Can show any color

3) Can be used as flexible led display screen to show image and video


Installation Notice

1) Make sure the connection is correct according to the diagram

2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
