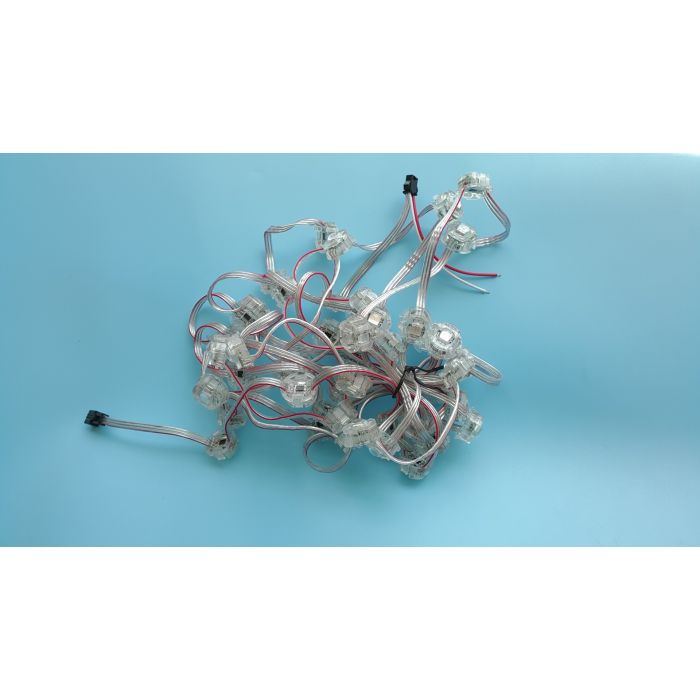

5V 50 node 20mm type-C WS2811 SM16703 RGB 5050 LED point light

$8.95
In stock
SKU
1894
  • Buy 100 for $7.95 each and save 11%
  • Buy 1000 for $7.50 each and save 16%

Maximum 999 characters

Programmable digital WS2811 or SM16703 IC, this price includes 50 pieces of module node, each node can be addressable individually

DC 5V safe working voltage, made in Shenzhen of China, reliable quality with 2 years warranty

We are LED light factory which can supply customized LED light products, for big quantity products, please contact us



Parameter

1) Voltage: DC 5V

2) IC type: WS2811 is default, SM16703 is available

3) IC quantity: 1 piece per light, 50 nodes have total 50 ICs

4) LED type: SMD 5050 RGB

5) LED quantity: 1 piece per light, total 50 LEDs

6) Pixel: each module is one pixel, 50 nodes have total 50 pixels

7) Max power: 0.24W/piece

8) Bit: 8

9) Greyscale: 256 levels

10) Diameter: 20mm

11) Package: 50 pieces/string

12) Distance between lights: 100mm



Connection

1) Signal wire: DC+, DAT, GND

2) DC+ and GND connect to power supplier; DAT and GND connect to controller

3) Relative Controller: SPI controller support WS2811 or SM16703; when use DMX decorder, can connect to DMX system

4) Support online control



Color

1) Each pixel can be controlled individually

2) Can show any color

3) Can be used as flexible led display screen to show image and video



Installation Notice

1) Make sure the connection is correct according to the diagram

2) Pay attention to the parameters limit of voltage. Do NOT run over the peak value

5V 100 node 20mm WS2811 RGB 5050 LED pixel point light
