Most products are directly from factories in China, buy more would get better price

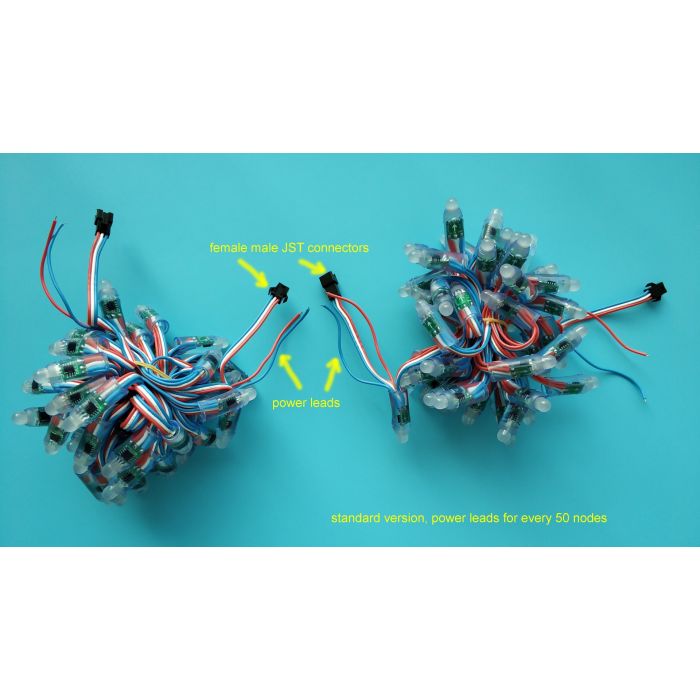

12V IP68 waterproof 100 nodes WS2811 RGB LED pixel module string

$21.25
In stock
SKU
1867
  • Buy 100 for $18.95 each and save 11%
  • Buy 1000 for $18.25 each and save 14%

Maximum 100 characters

Model: LM-WS2811

intelligent programmable WS2811 IC, RGB color, 256 scales, this string has 100 node pixels, excellent performance

DC 12V working voltage, safe assurance

direct from factory, good price, made in Shenzhen of China, reliable quality with 2 years warranty

We are LED light factory, you can customize with special requirements, if buy large quantity, you can get very good price with professional service. For any questions on product specifications, production time or shipping methods, please feel free to contact us

Specification

IC type: WS2811

Working voltage: DC 12V

Working current: 50 mA

Working consumption: 0.6W

Working temperature: -40°C~ 60°C

Protection grade: IP68 waterproof

LED type: 1 piece 8mm strawhat LED

Spacing: 10cm is default, you can customize the length if order 50 or above

Wire color: Red White Blue is default, white or black is available if order over 100 strings

LED quantity: 1 piece

Viewing angle: >90 degrees

Lifespan: MTBF>50000 hours



Feature

Programmable by software

Individually control

Conformal coating, PVC glue protection

IP68 waterproof protection

Easy installation (punching 12mm hole on metal panel)

100 nodes per string



Applications

Meets the general lighting, environment such as: outdoors advertising, Christmas decoration

RGB pixels are digitally controllable lights you can set to any color, or animate.

Each RGB LED and controller chip is molded into a 'dot' of silicone, the dots are waterproof and rugged.

There are four flanges moulded in so that you can 'push' them into a 12mm drill hole in any material up to 1.5mm/0.06" thick.

They are typically used to make outdoor signs. Compared to our other 20mm LED dots.

These are diffused 8mm LEDs so they are not as bright but they color mix a little nicer.

A 3-conductor cable connects the pixels.

Each dot is digitally controlled, with an internal 5-bit PWM LED driver (15 bit color for 32,768 different shades). The pixels must be clocked by a micro controller.

The pixels use 8mm diffused  RGB LEDs with brightness of about 300 mcd per individual R/G/B LED.
