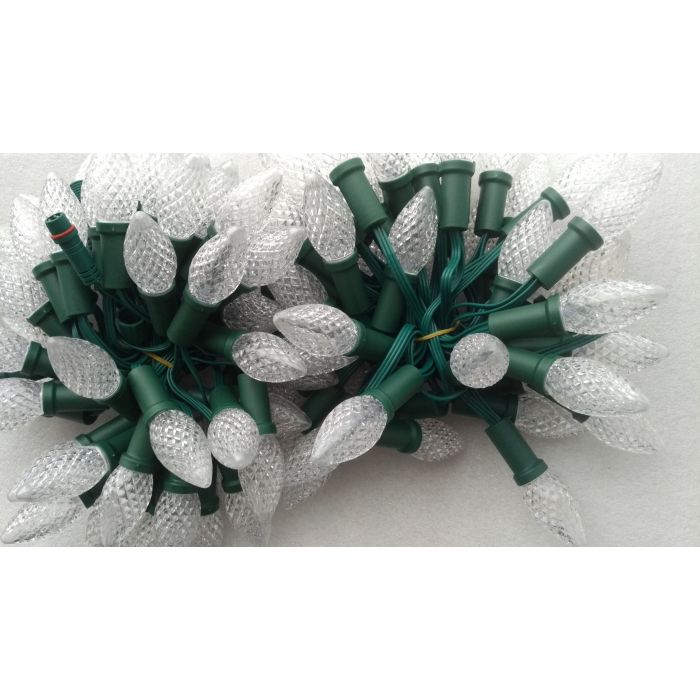

12V WS2811 S20 waterproof C9 C7 G27 G40 RGB LED Christmas light

$18.75
In stock
SKU
1936

Maximum 200 characters

12V safe working voltage (5V version is no longer produced), IP68 waterproof protection rate, programmable digital WS2811, total 50 module nodes

Made in Shenzhen of China, reliable quality with 2 years warranty

We are LED light factory, you can customise LED light products, for big quantity orders, please contact us

Parameter

1) Working voltage: DC 12V

2) IC type: WS2811

3) IC quantity: 1 piece per light

4) LED type: DIP F8 RGB

5) LED quantity: 1 piece per light

6) Pixel: each module is one pixel, this point light has 50 node pixels

7) Max power: 0.6W/piece, 50 pieces per string, total 30W

8) Bit: 8

9) Greyscale: 256 levels

10) Diameter: light hole 8mm, IP68 waterproof protection

12) Wire spacing: 150mm

13) Lampshade: C9 crystal is default, C7 crystal, G27, G40 is optional with D20D base

14) Cover color: green is default, white and black is optional



Connection

1) Signal wire: DC+, DAT, GND for WS2811, UCS1903, SM16703.

2) DC+ and GND connect to power supplier; DAT and GND or CLK connect to controller

3) Relative Controller: SPI controller support WS2811; when use DMX decorder, can connect to DMX system

4) Support online control



Color

1) Each pixel can be controlled individually

2) Can show any color

3) Can be used as flexible led display screen to show image and video



Installation Notice

1) Make sure the connection is correct according to the diagram

2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
