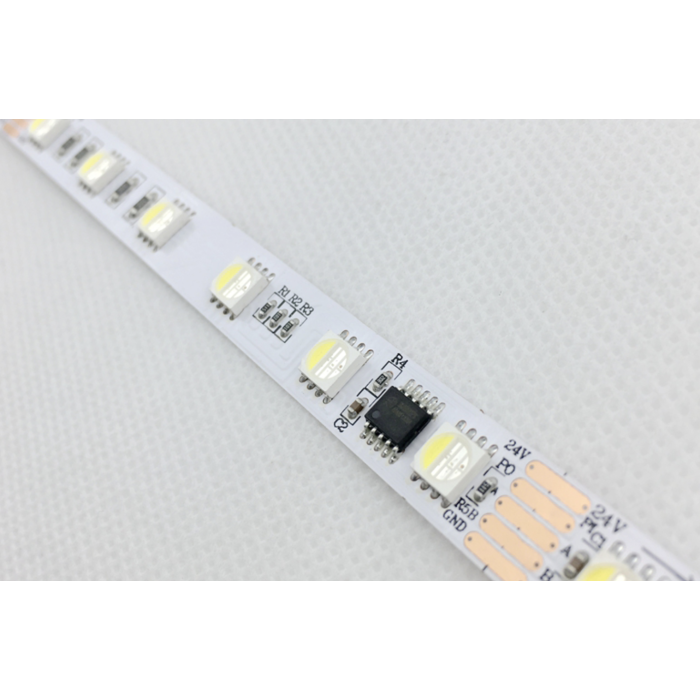

24V 5 meters 300 LEDs addressable TM512A DMX512 RGBW 5050 LED strip

$46.75
In stock
SKU
2853
  • Buy 100 for $41.95 each and save 10%
  • Buy 1000 for $38.75 each and save 17%

Maximum 100 characters

TM512A IC is working with SMD RGBW 5050 LED, support DMX512 protocol, dual signal design, with signal breakpoint continued transmission function, interrupt compatibility, when one pixel fails, while the other can still work well, can work with Madrix

SMD 5050 LED has 16 million vivid RGBW dream colors, and every 6 LEDs can be as a addressable pixel, excellent performance

Made in Shenzhen of China, high quality with 2 years warranty, direct from factory, good price

We are LED light factory which can supply customized LED products, for big quantity products, please contact us

Feature

Dual-signal wires version: signal break-point continuous transmission, it has two signal wires, when one LED is damaged, it won't affect signal transmission, while the other pixels can still work well. No matter what or how many IC broken, the LED strip can still work normally. It uses 5-cable with double signal cables design, 256 gray scale high brightness with fast data transfer. Using international standards DMX512 protocol, product with one and multi point damage does not affect other parts of the strip.

Programmable addressable: one TM512A IC control 6 LEDs, every 6 LEDs can be controlled as a pixel, you can use Madrix, Arduino, Adafruit NeoPixel Library, FastLED library and Raspberry Pi, K-1000C etc. to program the animation effects.

It is very suitable for large lighting project such as city skyline lighting, building outline decoration, HD advertising screen, shopping malls decoration etc.

Adopt best flexibility PCB as a substrate, FPCB has good electrical conductivity, fast heat dissipation, resistant to bend, can be bent into any shape.

Compatible and extended DMX512(1990) signal protocol.

Support coding after installation operation, you can program for controller to achieve any animation effects.

Safe 24V low working voltage

Can be made of waterproof level, IP65 dripping glue waterproof or IP67 full silicone tube casing waterproof.

Every 6 LEDs are as one pixel, takes 4 channels (R/G/B/W each chip takes 1 channel), can OEM customized color effects from our engineer.



Specifications

IC type: TM512A, with breakpoint continue function design, interrupt compatibility, each TM512A IC controls 6 SMD RGBW 5050 LEDs

Light source: full color SMD RGBW 5050 LED, high intensity and reliability

Gray levels: 256

Working voltage: DC 24V

LED quantity: 60 per meter, 5 meters have total 300 LEDs

Pixel number: 10 per meter, 5 meters have total 50

Power: each LED is 0.3W, 300 LEDs have total 90W

Beam angle: 120°

Protection level: IP20 non-waterproof is default, IP65 gel coating waterproof, IP67 silicone tube waterproof is optional

FPCB color: white

Dimension: 5000x10x2.5mm

Working temperature: -40 ~ 70℃

Storage temperature: -50 ~ 80℃

Life span: 50 000 hours

Certifications: CE, RoHS

DC+: connect to power supply DC+

DMX+(A): connect to controller DMX+(A)

DMX-(B): connect to controller DMX-(B)

PI: write the address, one address cable

GND: connect to power supply GND & controller GND



Application

Light up colorful home life, DIY household lights for hallways, stairs, trails, windows.

Hotels decoration use, theaters, clubs, shopping malls, festivals and performances use.

Architectural decorative lighting, archway, canopy and bridge edge lighting, security lighting and emergency.

Extensively applied in backlighting for signage letters, concealed lighting and advertisement sign lighting.

Applicable for automobile & airplane model decoration, contour lighting or border.
