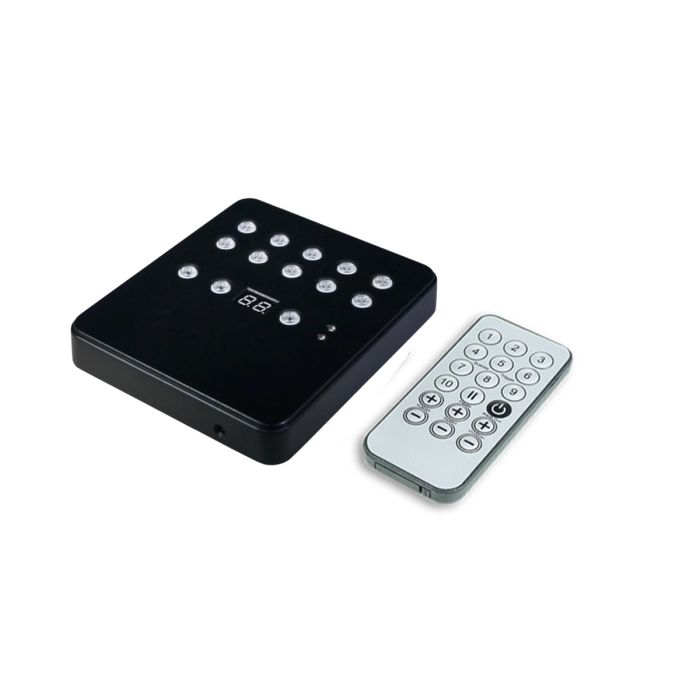

DM512 SkyDance USB-DMX wall interface controller

Number of DMX Input/Output: 512 or 1024 (PC + Standalone)

PC DMX IN triggers: yes

Standalone DMX IN triggers: 512 channels available only with a 1024 interfaces

DMX Merging: Yes, 512 channels from DMX B to DMX A, only with 1024 interfaces

Standalone DMX merging: 512 channel from DMX B to DMX A only with 1024 interfaces

External triggers: x4 contacts (5V.) multiplexed to 15 contacts max, (20m max cable length)

Infra-Red connection: Yes via an external IR module and 3 connection wires (max 15m away)

Master/Slave connection: Yes, 3 wires for 16 connected interfaces max, (20 m cable distance max)

DMX Speed: 1 to 45 Hz, MaB, Bk

USB Mode: Yes

Stand Alone Mode: Yes

Internal Clock (RTC): Yes

Internal calendar: Yes

Backups of the internal clock: Yes, 3 weeks without power

Internal memory: Yes (4 MB)

Memory Capacity: 4000 steps with 512 channels, 100 000 steps with 16 channels

Display of signal states: DMX LED + USB LED

Data display: 7 segment LED display (blue)

Power supply input: 9-36V external or 5V with USB

Contact Input Voltage (stand-alone): 5V

Input Current: 80 to 200 mA

Power: 2W

CPU's technology: 32 bits

Dimensions: H : 127 mm, W : 110 mm, D : 19 mm

Weight: 250g

Color: Black / White

Operating temperatures: -25 to +70 °C

Certificates: CE, RoHS

IP Rating: IP20

Place of Use: Indoor

Storage: Keep in a dry place

Warranty: 24 months

Compatibility: 8 and 16 bit DMX fixtures

System Compatibility: Windows XP, Vista, 7, 8, 8.1, 10, MAC OS X (10.6 and higher), Linux
