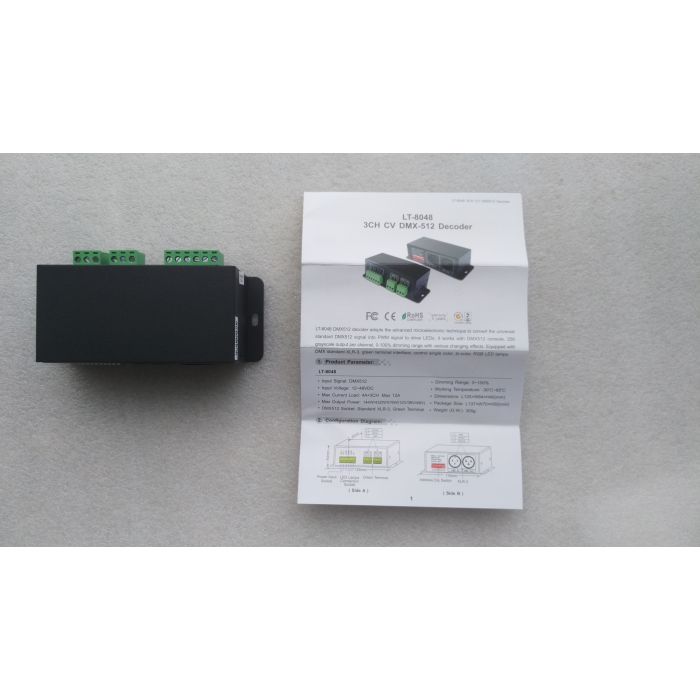

LTech LT-8048 3 channels DMX-PWM DMX512 LED decoder
$27.95
In stock
SKU
2148
- Buy 30 for $25.95 each and save 7%
Made in Zhuhai of China, reliable quality with 5 years warranty, genuine version, not copycat
Direct from factory, good price, we are the distributor of LTech controllers
3 channels support
DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to CC/CV PWM signal to drive LED, which controlled by DMX512 console, realize 0-100% brightness or various changing effect. And can control single color, dupi-color, RGB, RGBY, RGBW, RGBA LED lights.
Have excellent performance:
16-bit dimming curve.
Frame rate is as high as 850 frames per second.
Built-in protection circuit of resistance to lighting stroke and ESD static electricity.
|
LT-8048 3CH CV DMX-PWM Decoder |
|
| Input signal | DMX512 |
| Input power | DC12V～DC48V |
| Max load current | 4A ×3CH Max 12A |
| Max output power | 144W/432W/576W(12V/36V/48V) |
| DMX512 socket | XLR-3, Green terminal (with signal amplification function) |
| Dimming range | 0~100% |
| Working temperature | -30℃～65℃ |
| Dimension | L125×W52×H40mm |
| Package Size | L135×W70×H50mm |
| Weight (G.W) | 300g |
