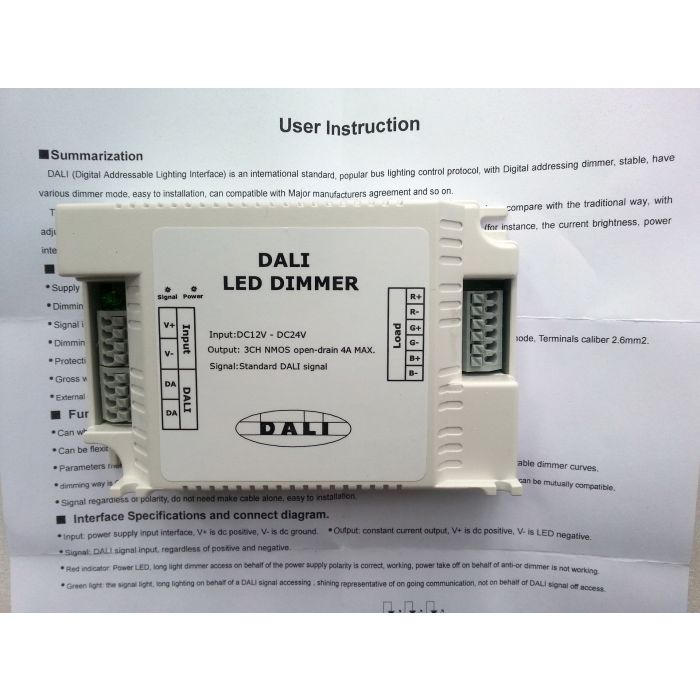

RGB LED lighting control DALI dimmer

$26.95
In stock
SKU
1204
  • Buy 100 for $23.95 each and save 11%
  • Buy 1000 for $22.95 each and save 15%

DALI control lighting system

made in Shenzhen, reliable qualtiy with 2 years warranty

direct from factory, good price

DALI (Digital Addressable Lighting Interface) is an international standard, popular lighting control protocol, which adopts Manchester codes of digital transmission, with a whole grouping dimming, dimming addressing inquiries, and other powerful state lighting dimming function. Compared with the 0-10v analogue dimming, it’s more precise dimming, addressable, stable, focus control, easy installation and so on. This product adopts a standard DALI dimming signal to digital LED dimming using standard IEC60929. LED dimming with the traditional way of comparison, with adjustable light a wide range of diverse dimming, dimming of high precision, check the current status LED (such as the current brightness, power intensity, the minimum support brightness, address, etc.), easy distributed control and so on.



Working temperature : -20~60°C

Supply voltage: DC 12V-24V

Dimming signal: According to DALI standaed V0(IEC60929) signal

Output: 3 channels

Dimming range: 0.1%-100%

External dimension: L103.64*W67.9*H29.7 mm.

Packing size: L145*W95*H50 mm

Gross weight: 95g

Net weight: 70g

Connection mode: Spring-free screw-type wring, terminal block 2.6mm diameter

Output power: 1-12W





Function features

Can whole/group/addressing dimming

Can be preset scene dimming

Can be flexibly configured dimmer's dimming parameters

Can check dimmer's dimming parameters

Parametrs memory function



Intelligent identification the power of lamps, and choose suitable dimmer curves

Dimming way is comfortable and consistent with the human eye

With the international standard, different manufacturers DALI devices can be mutually compatible

Signal regardsless of polarity, do not need make cable alone, easy to installation
