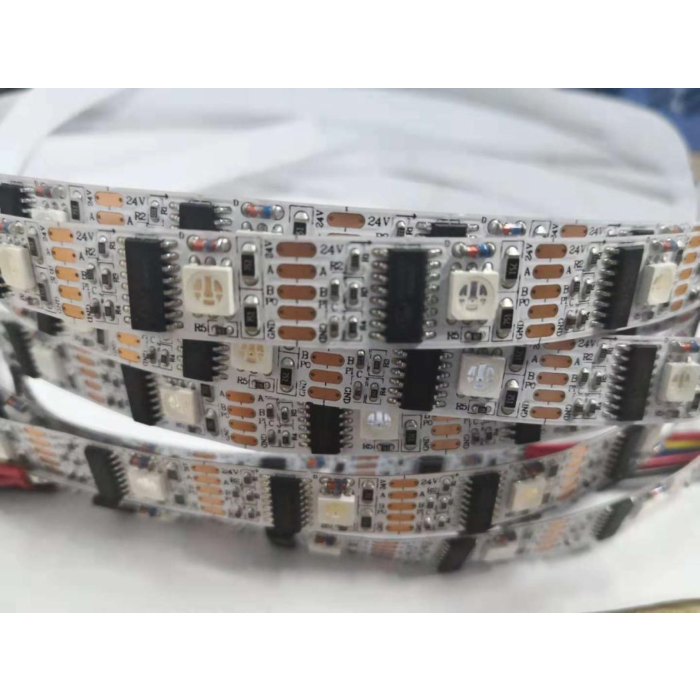

24V 5 meters 180 LEDs programmable DMX512 RGB 5050 LED light strip
DMX512 IC is working with SMD RGB 5050 LED, dual signal design, with signal breakpoint continued transmission function, interrupt compatibility, when one pixel fails, while the other can still work well, can work with Madrix
SMD 5050 LED has 16 million vivid RGB dream colors, and each LED can be individually addressable, excellent performance
Made in Shenzhen of China, high quality with 2 years warranty, direct from factory, good price
We are LED light factory which can supply customized LED products, for big quantity products, please contact us
Feature
Dual-signal wires version: signal break-point continuous transmission, it has two signal wires, when one LED is damaged, it won't affect signal transmission, while the other pixels can still work well. No matter what or how many IC broken, the LED strip can still work normally. It uses 5-cable with double signal cables design, 256 gray scale high brightness with fast data transfer. Using international standards DMX512 protocol, product with one and multi point damage does not affect other parts of the strip.
Individually addressable: one DMX512 IC control one LED, each LED can be controlled individually, you can use Madrix, Arduino, Adafruit NeoPixel Library, FastLED library and Raspberry Pi, K-1000C etc. to program the animation effects.
It is very suitable for large lighting project such as city skyline lighting, building outline decoration, HD advertising screen, shopping malls decoration etc.
Adopt best flexibility PCB as a substrate, FPCB has good electrical conductivity, fast heat dissipation, resistant to bend, can be bent into any shape.
Compatible and extended DMX512(1990) signal protocol.
Support coding after installation operation, you can program for controller to achieve any animation effects.
Safe 5V low working voltage
Can be made of waterproof level, IP65 dripping glue waterproof or IP67 full silicone tube casing waterproof.
Each independent LED is as one pixel, takes 3 channels (R/G/B each chip takes 1 channel), can OEM customized color effects from our engineer.
Specifications
IC type: DMX512, individually addressable, with breakpoint continue function, interrupt compatibility, each DMX512 IC controls a SMD RGB 5050 LED
Light source: full color SMD RGB 5050 LED, high intensity and reliability
Gray levels: 256
Working voltage: DC 24V
LED quantity: 36 per meter, 5 meters have total 180 LEDs
Pixel number: 36 pixels per meter, 5 meters have total 180
Power: each LED is 0.3W, 180 LEDs have total 54W
Beam angle: 120°
Protection level: IP20 non-waterproof is default, IP65 gel coating waterproof, IP67 silicone tube waterproof is optional
FPCB color: white
Dimension: 5000x12x2.5mm
Working temperature: -40 ~ 70℃
Storage temperature: -50 ~ 80℃
Life span: 50 000 hours
Certifications: CE, RoHS
DC+: connect to power supply DC+
DMX+(A): connect to controller DMX+(A)
DMX-(B): connect to controller DMX-(B)
PI: write the address, one address cable
GND: connect to power supply GND & controller GND
Application
Light up colorful home life, DIY household lights for hallways, stairs, trails, windows.
Hotels decoration use, theaters, clubs, shopping malls, festivals and performances use.
Architectural decorative lighting, archway, canopy and bridge edge lighting, security lighting and emergency.
Extensively applied in backlighting for signage letters, concealed lighting and advertisement sign lighting.
Applicable for automobile & airplane model decoration, contour lighting or border.
