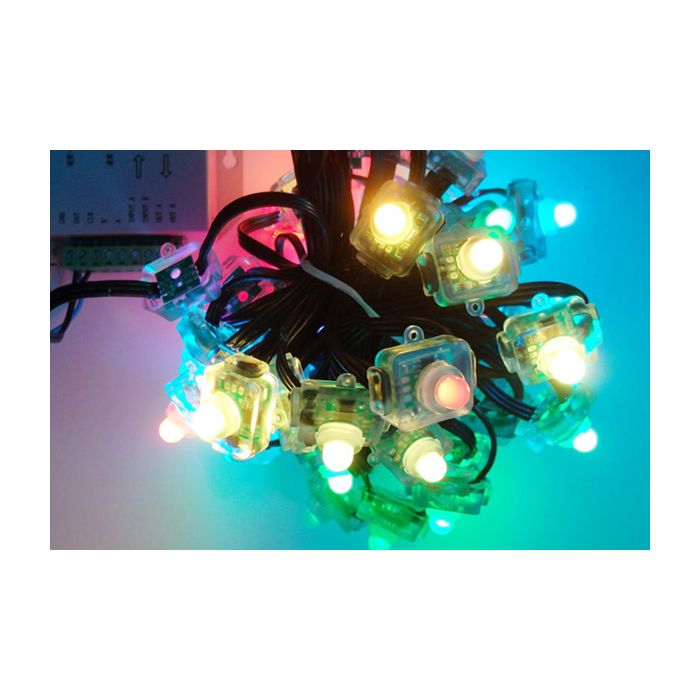

5V 50 nodes rectangular IP68 UCS1903 RGB LED pixel module light

$9.95
In stock
SKU
1871
  • Buy 100 for $8.95 each and save 10%
  • Buy 1000 for $7.95 each and save 20%

Maximum 100 characters

Model: LM-UCS1903

intelligent programmable UCS1903 IC, RGB color, 256 scales, this string has 50 node pixels, excellent performance

DC 5V working voltage, safe assurance

made in Shenzhen of China, reliable quality with 2 years warranty, direct from factory, good price

We are professional on LED light products, you can customize with special requirements. For any questions on product specifications, production time or shipping methods, please feel free to contact us

Specification

IC type: UCS1903

Working voltage: DC 5V

Working current: 60 mA

Working consumption: 0.3W

Working temperature: -40°C~ 60°C

Protection grade: IP68 waterproof

Wire color: Red White Blue is default, all black is for customization

Dimension: 25*18.5*22mm

LED type: 1 piece 8mm strawhat LED

LED quantity: 1 piece

Viewing angle: >90 degrees

Lifespan: MTBF>50000 hours



Feature

Programmable by software

Individually control

Conformal coating, PVC glue protection

IP68 waterproof protection

Easy installation (punching 12mm hole on metal panel)

50 pcs per string



Applications

Meets the general lighting, environment such as: outdoors advertising, Christmas decoration

RGB pixels are digitally controllable lights you can set to any color, or animate.

Each RGB LED and controller chip is molded into a 'dot' of silicone, the dots are waterproof and rugged.

There are four flanges moulded in so that you can 'push' them into a 12mm drill hole in any material up to 1.5mm/0.06" thick.

They are typically used to make outdoor signs. Compared to our other 20mm LED dots.

These are diffused 8mm LEDs so they are not as bright but they color mix a little nicer.

A 3-conductor cable connects the pixels.

Each dot is digitally controlled, with an internal 5-bit PWM LED driver (15 bit color for 32,768 different shades). The pixels must be clocked by a micro controller.

The pixels use 8mm diffused RGB LEDs with brightness of about 300 mcd per individual R/G/B LED.
