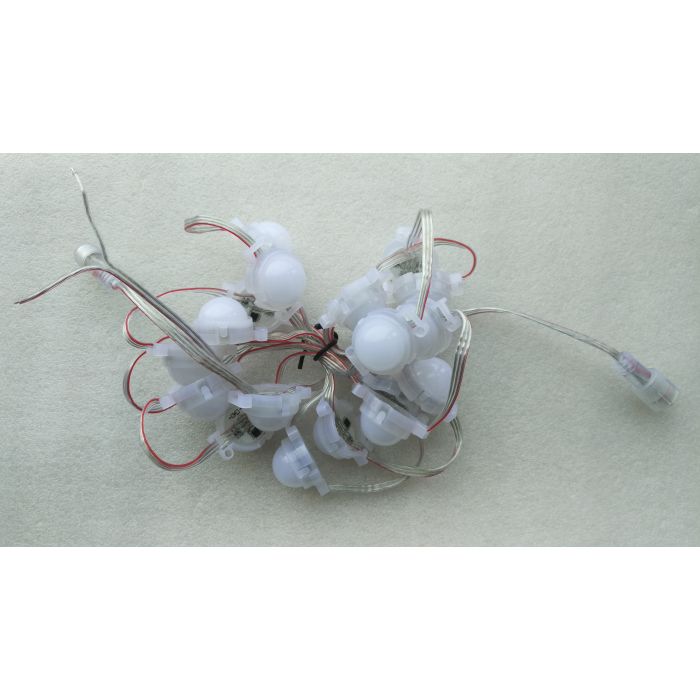

30mm G type 12V WS2811 UCS1903 SM16703 RGB 5050 LED point light

$7.95
In stock
SKU
2619
  • Buy 100 for $6.95 each and save 13%
  • Buy 1000 for $5.95 each and save 25%

Maximum 200 characters

Programmable digital WS2811, UCS1903 or SM16703 IC, this price includes 20 pieces of module node, each LED node can be addressable individually

DC 12V safe working voltage

Made in Shenzhen of China, reliable quality with 2 years warranty

We are LED light factory which can supply customized LED light products, for big quantity products, please contact us

Parameter

1) Voltage: DC 12V

2) IC type: WS2811 is default, UCS1903 and SM16703 are optional

3) IC quantity: 1 piece per light, 20 nodes have total 20 ICs

4) LED type: SMD 5050 RGB

5) LED quantity: 3 piece per light, 20 nodes have total 60 LEDs

6) Pixel: each module is one pixel, 20 nodes total 20 pixels

7) Max power: 0.72W/piece

8) Bit: 8

9) Greyscale: 256 levels

10) Diameter: 30mm, clear transparent dome housing is default, milky white color dome housing is available, IP68 waterproof protection rate

11) Package: 20 pieces/string

12) Distance between lights: 150mm



Connection

1) Signal wire: DC+, DAT, GND

2) DC+ and GND connect to power supplier; DAT and GND connect to controller

3) Relative Controller: SPI controller support W2811, UCS1903, SM16703

4) Support online control



Color

1) Each pixel can be controlled individually

2) Can show any color

3) Can be used as flexible led display screen to show image and video



Installation Notice

1) Make sure the connection is correct according to the diagram

2) Pay attention to the parameters limit of voltage. Do NOT run over the peak value
