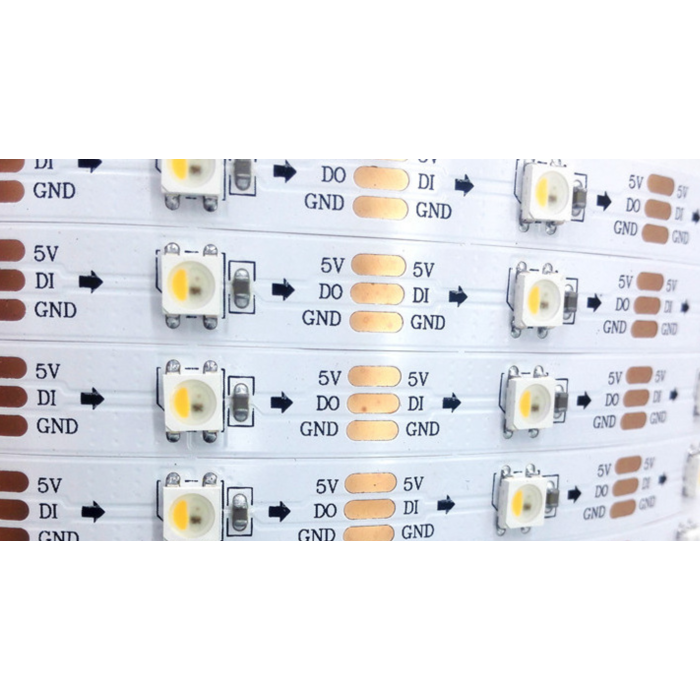

5V 150 LEDs dream color programmable SK6812 RGBW 5050 LED light strip

$25.95
In stock
SKU
2732
  • Buy 100 for $22.95 each and save 12%
  • Buy 1000 for $20.95 each and save 19%

Maximum 200 characters

Made in Shenzhen, reliable quality, direct from factory, good price

We are LED light factory which can supply customized LED light products, for big quantity products, please contact us

Features

Top SMD internal integrated high quality external control line serial cascade constant current IC. Control circuit and the RGBW chip in SMD 5050 components, to form a complete control of pixel, color mixing uniformity and consistency. Built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line. The built-in power on reset and reset circuit, the power does not work. Gray level adjusting circuit (256 level gray scales adjustable). Red drive special treatment, color balance. Line data transmission. Plastic forward strengthening technology, the transmission distance between two points over 10M. Data transmission frequency up to 800Kbps, when the refresh rate of 30 frames per second, a cascade of not less than 1024. Built-in powerpolarity protection module, powerpolarity will not damage.



Specifications

Digital programmable IC: SK6812

Light source: SMD 5050 RGBW

Working voltage: DC 5V

Size: 5000mm x 10mm x 2.5mm (length x width x height)

LED quantity: 30 LEDs per meter, 5 meters, total 150 LEDs

Pixel quanity: each LED is a pixel, 30 pixels per meter, 5 meters, total 150 pixels

Power: 7.2W per meter, 5 meters have total 36 watts

Emitting color: BGRW (Blue, Green, Red, White), pure white 6000-6500K is default, warm white 2700-3200K are available

Wave length: Red: 620-625nm; Green: 522.5-525nm; Blue: 467.5-470nm

Luminous flux: Red: 700-1000mcd; Green: 1500-2200mcd; Blue: 700-1000mcd

Viewing angle: 120 degrees

PCB color: white or black

Protection rate: IP20 non-waterproof is default, IP65 glue waterproof, IP67 silicone tube waterproof and IP68 waterproof is available

Certifications: CE, RoHS
