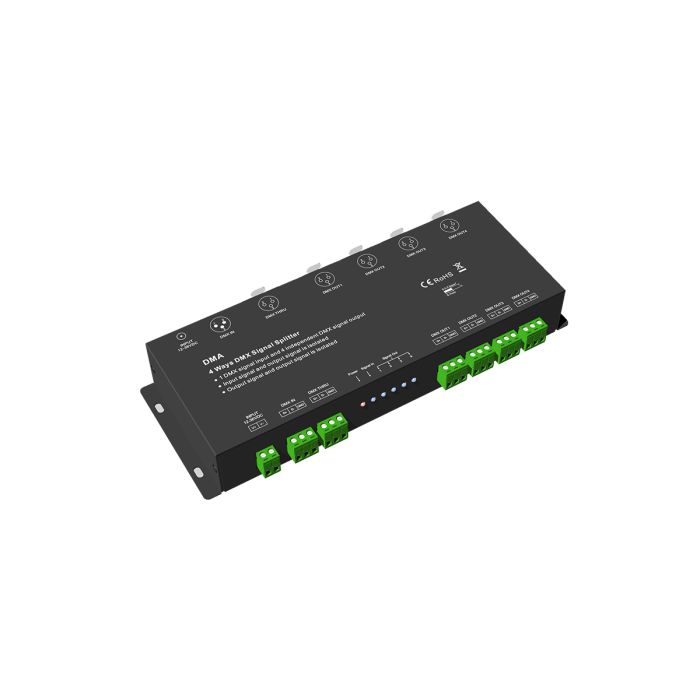

DMA skydance 4 channels DMX512 signal splitter
Input and output optical isolation/Four independent outputs/DMX512-A compatible
We are distributor of SkyDance products, direct from factory, good price
Features
One DMX512 signal input, repeat four DMX512 signal output, each allowing for 32 DMX devices to be connected.
Dedicated to amplify, distribute and insulate the signal that comes from the lighting system equipment when it is
connected to the bus of DMX512(or RS-485).
Photo-electricity insulation between input and output terminals, output terminals among channels.
Input isolated from outputs to 500VAC, 1000VDC.
Outputs are isolated from each other to 500VAC, 1000VDC.
Input and outputs are ture RS-485 rated, and no microprocessors are used for maximum reliability.
3 pin XLR / 3 screw terminals input and loop through, 5 pin XLR option available.
6 front panel LEDs indicate power in, DMX in and DMX output status at each output.
