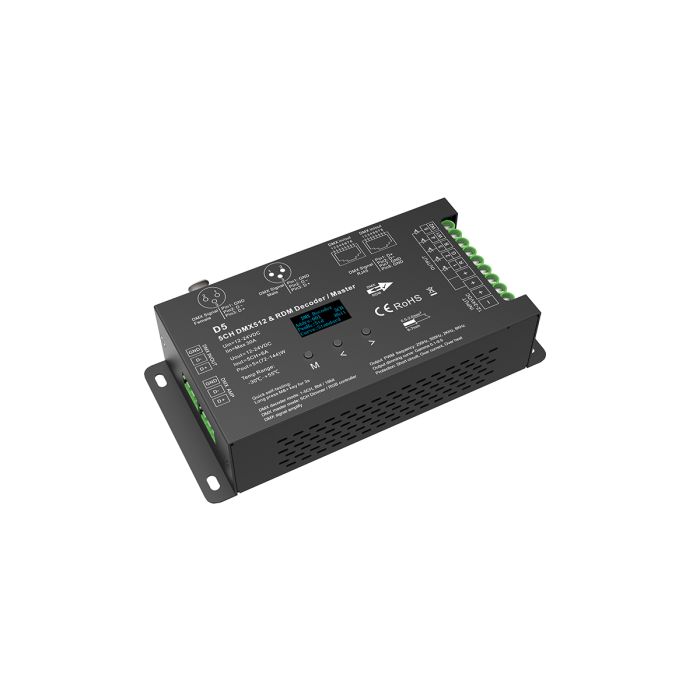

D5 SkyDance 5 channels constant voltage DMX512&RDM decoder
5 channels constant voltage output, DC 12V-24V
We are distributor of SkyDance products, directly from factory, good price
Made in Guangzhou of China, reliable quality
Features
5 channels constant voltage output, Max. 6A current per channel, up to 720W output power.
Master & decoder mode, RDM function.
Easy operation with OLED display and 3 buttons.
1/2/3/4/5 channel decoding mode selectable.
PWM frequency 250/500/2000/8000Hz selectable.
16bit (65536 levels) /8bit (256 levels) grey level selectable.
Output dimming curve gamma value 0.1-9.9 selectable.
Stand-alone RGB mode and 5 channel dimmer mode selectable, work as DMX master(8 bit) to control other decoders.
Built-in 25 RGB programs, speed and brightness adjustable.
Support 3 kinds of DMX ports: Green terminal(amplify output), XLR3 and RJ45 port.
Comply with the DMX512 standard protocols.
Over-heat / Over-load / Short circuit protection, recover automatically.
With fast self-testing function.
