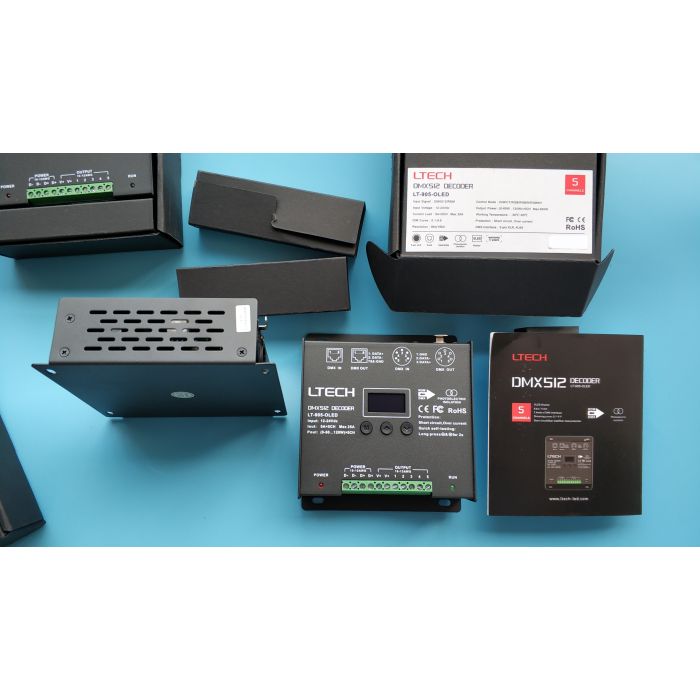

LTech LT-905-OLED 5 channels constant voltage DMX512 decoder
- Buy 32 for $56.75 each and save 5%
Made in Zhuhai of China with 5 years warranty, genuine version, high quality, not cheap copycat
We are the distributor of LTech products, directly from factory, good price
Click here to know more detailed specification parameters about LTech LT-905-OLED
LTech LT-905-OLED feature
Designed for Hi-power multiple channels application, 5 channels output, and maximum 5A current per channel, up to 600W output power
Easy operation with OLED screen and touch buttons.
5 kinds of mode optional: dimming, CT, RGB, RGBW, RGBWY
Support 2 kinds of DMX ports with photoelectric isolation function: 5-pin XLR, RJ45.
With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing&setting, DMX address setting, equipment recognition, etc.
With firmware upgrade function.
With short circuit, over current and over-heat protection, as well as warning function when fault.
With power-on state management and fast self-testing function.
16bit (65536 levels) / 8bit (256 levels) grey level optional.
Optional for standard, linear, LOG or custom 0.1-9.9 dimming curve.
Model : LT-905-OLED
Input Signal : DMX512/RDM
Input Voltage : DC 12~24V
Current Load : 5A × 5CH Max 25A
Output Power : (0~60W...120W) × 5CH Max. 600W
DMX Interface : 5-pin XLR, RJ45
Control Mode : Dimming/CT/RGB/RGBW/RGBWY
Dimming Curve : 0.1~9.9
Grey Level : 8bit (256 levels) / 16bit (65536 levels)
Photoelectric Isolation : Yes
Protection: Short circuit / Over current / Over-heat
Working Temperature: -30°C~65°C
Dimensions: L122×W110×H37mm
Package Size: L127×W123×H41mm
Weight (G.W.) : 550g
