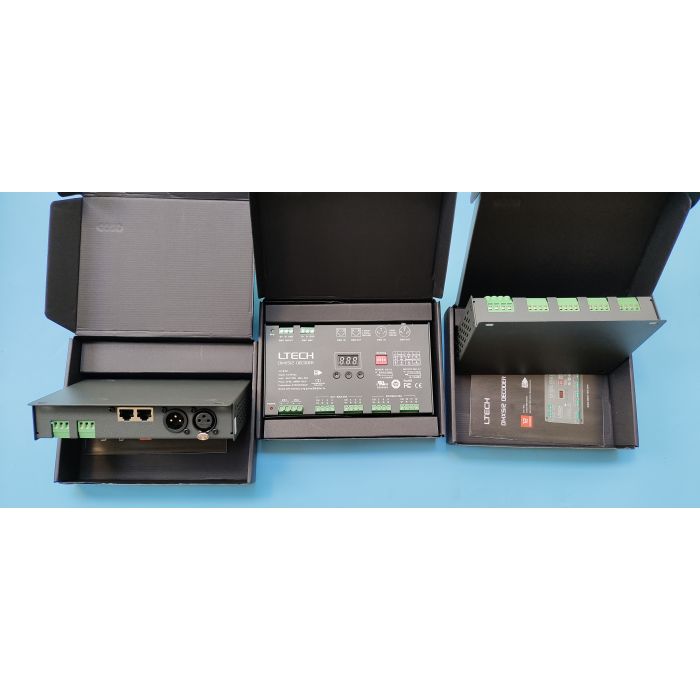

LTech LT-912 12 channels constant voltage DMX-PWM RDM decoder
- Buy 32 for $71.95 each and save 4%
Made in Zhuhai of China with 5 years warranty, genuine version, high quality, not cheap copycat
We are the distributor of LTech products, directly from factory, good price
Click here to know more detailed specification parameters about LTech LT-912
LTech LT-912 Product Introduction
1. Designed for Hi-power multiple channels application, 12 channels output, and up to 1152W output power.
2. Easy operation with digital display and the touch buttons.
3. Support 3 kinds of DMX ports : 3-pin XLR, RJ45 and green terminal (with signal amplifier function).
4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
5. With shortcut protection and over load protection, as well as warning function when fault.
6. With fast self-testing function.
7. High/low PWM frequency for optional
8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
Technical specifications
Model: LT-912
Input Signal: DMX512/RDM
Input Voltage: DC 12~24V
Current Load: 4A×12CH Max. 48A
Output Power: (0~48W...96W) × 12CH Max. 1152W
DMX Interface: 3-pin XLR, RJ45, Green terminal
Grey Level: 8bit (256 levels) / 16bit (65536 levels)
Protection: Shortcut / Over load
Working Temperature: -30°C~65°C
Dimensions: L180×W122×H39mm
Package Size: L193×W127×H41mm
Weight (G.W.): 730g
