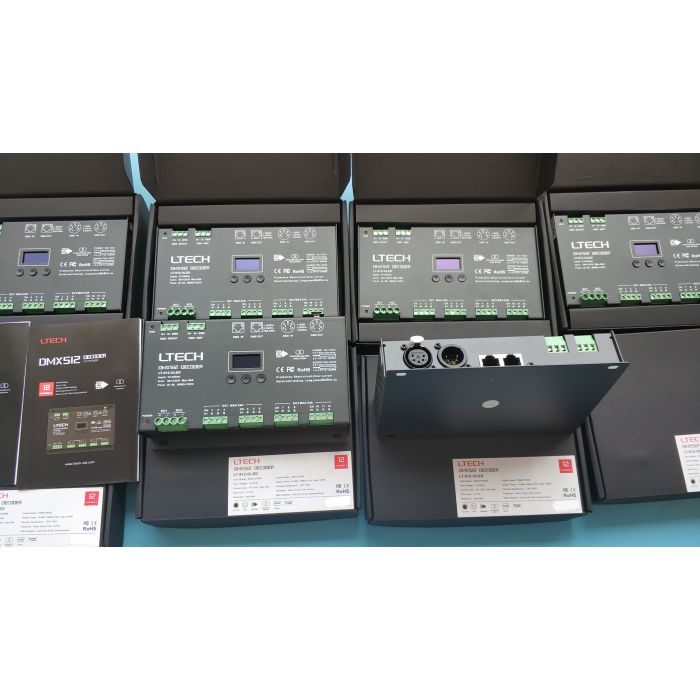

LTech LT-912-OLED 12 channels constant voltage DMX decoder
- Buy 32 for $78.95 each and save 4%
Made in Zhuhai of China with 5 years warranty, genuine version, high quality, not cheap copycat
We are the distributor of LTech products, directly from factory, good price
Click here to know more detailed specification parameters about LTech LT-912-OLED
LTech LT-912-OLED features
Designed for Hi-power multiple channels application, 12 channels output, and maximum 4A current per channel, up to 1152W output power
Easy operation with OLED screen and touch buttons.
3 kinds of mode optional: single color, color temperature, RGB.
Support 3 kinds of DMX ports with signal isolation function: 5-pin XLR, RJ45 and green terminal (with signal amplifier function).
With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing&setting, DMX address setting, equipment recognition, etc.
With firmware upgrade function.
With short circuit, over current and over-heat protection, as well as warning function when fault.
With power-on state management and fast self-testing function.
16bit (65536 levels) / 8bit (256 levels) grey level optional.
Optional for standard, linear, LOG or custom 0.1-9.9 dimming curve.
Model : LT-912-OLED
Input Signal : DMX512/RDM
Input Voltage : DC 12~24V
Current Load : 4A × 12CH Max 48A
Output Power : (0~48W...96W) × 12CH Max. 1152W
DMX Interface : 5-pin XLR, RJ45, Green terminal
Control Mode : Dimming/CT/RGB
Dimming Curve : 0.1~9.9
Grey Level : 8bit (256 levels) / 16bit (65536 levels)
Photoelectric Isolation : Yes
Protection: Short circuit / Over current / Over-heat
Working Temperature: -30°C~65°C
Dimensions: L180×W122×H39mm
Package Size: L193×W127×H41mm
Weight (G.W.) : 730g
