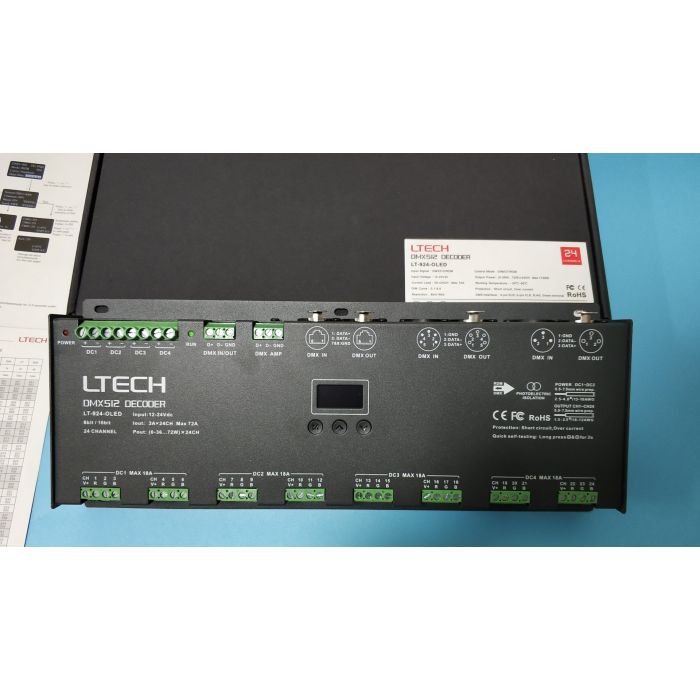

LTech LT-924-OLED 24CH CV DMX decoder RDM with display

$135.00
In stock
SKU
2831
  • Buy 32 for $129.00 each and save 4%
  • Buy 100 for $125.00 each and save 7%

Made in Zhuhai of China, high quality with 5 years warranty

We are the distributor of LTech controllers, direct from factory, genuine version, good price, not cheap copycat

Click here to know more detailed information about LT-924-OLED

LTech LT-924-OLED features

Designed for Hi-power multiple channels application, 24 channels output, and maximum 3A current per channel, up to 1728W output power

Easy operation with OLED screen and touch buttons.

3 kinds of mode optional: single color, color temperature, RGB.

Support 4 kinds of DMX ports with signal isolation function: 3-pin XLR, 5-pin XLR, RJ45 and green terminal (with signal amplifier function).

With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing&setting, DMX address setting, equipment recognition, etc.

With firmware upgrade function.

With short circuit, over current and over-heat protection, as well as warning function when fault.

With power-on state management and fast self-testing function.

16bit (65536 levels) / 8bit (256 levels) grey level optional.

Optional for standard, linear, LOG or custom 0.1-9.9 dimming curve.



Model: LT-924-OLED

Input Signal: DMX512/RDM

Input Voltage: 12~24V DC

Current Load: 3A×24CH Max 72A

Output Power: (0~36W...72W)×24CH Max.1728W

DMX Interface: 3-pin XLR, 5-pin XLR, RJ45, Green terminal

Control Mode: Dimming/CT/RGB

Dimming Curve: 0.1~9.9

Grey Level: 8bit (256levels) / 16bit (65536levels)

Photoelectric Isolation: Yes

Protection: Short circuit / Over current / Over-heat

Working Temperature: -30°C~65°C

Dimensions: L300×W122×H39mm

Package Size: L313×W127×H41mm

Weight (G.W.) : 1180g
