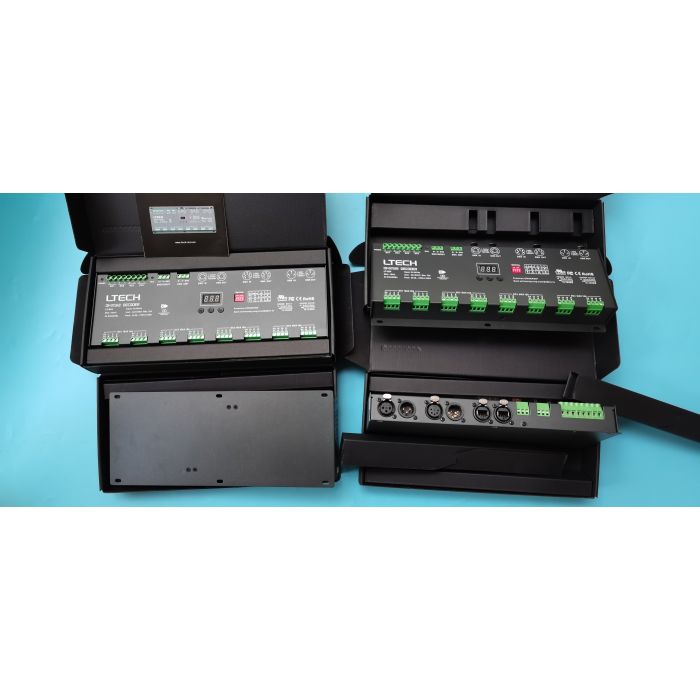

LTech 24CH LT-924 CV DMX-PWM RDM LED control decoder

$119.00
In stock
SKU
2944
  • Buy 32 for $115.00 each and save 3%

Made in Zhuhai of China, high quality with 5 years warranty

We are the distributor of LTech controllers, direct from factory, genuine version, good price, not cheap copycat

Click here to know more detailed information about LTech LT-924

 LTech LT-924 Product Introduction

1. Designed for Hi-power multiple channels application, 24 channels output, and up to 1728W output power.

2. Easy operation with digital display and the touch buttons.

3.Support4kindsofDMXports:3-pinXLR,5-pinXLR,RJ45andgreenterminal(with signal amplifier function).

4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.

5. With shortcut protection and over load protection, as well as warning function when fault.

6. With fast self-testing function.

7. High/low PWM frequency for optional.

8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.



Technical Specs

Model: LT-924

Input Signal: DMX512/RDM

Input Voltage: DC 12~24V

Current Load: 3A×24CH Max. 72A

Output Power: (0~36W...72W) × 24CH Max. 1728W

DMX Interface: 3-pin XLR, 5-pin XLR, RJ45, Green terminal

Grey Level:  8bit (256 levels) / 16bit (65536 levels)

Protection: Shortcut / Over load

Working Temperature: -30°C~65°C

Dimensions:  L300×W122×H39mm

Package Size: L313×W127×H41mm

Weight (G.W.): 1180g
