discontinued WiFi wireless remote 5 channels RGB/CW/WW music LED controller
this product was discontinued, please see other replacement products
Made in Shenzhen, reliable quality
Direct from factory, good price
Timing function, group control, music mode, 16 million RGBWW vivid colors, excellent performance
Work with iPhone or Android smart phones
LED WiFi controller music RGB/RGBW/RGBWW controller mobile bluetooth /mobile WiFi controller for iOS/Android for RGB/RGBW/RGBA LED strip
Specifications
(A) RGB/RGBW/RGBWW, 16 million colors, built-in 20 dynamic models, DIY model, music mode
(B) divide into groups function
(C) timing function, automatic turn on/off as your setting time. Set any dynamic models
(D) allocate to router by one key "WPS"
(E) after connecting router, controller WiFi signal will be hided automatically to prevent hotlinking
(F) memory function, keep same status as last time after power off
(G) single control by phone or integrated control by router
(H) operating platform: requires Android 2.3.3 or later, iOS 6.0 or later
Data Parameter
Input voltage: DC 12V-24V
Power: maximum 240W (DC 12V), Max 144W (DC 24V) (If more than 240W strips, please add power amplifier, thanks)
Application: common anode, constant voltage light, such as 12V LED strip, 12V LED panel light etc.
Output currrent: 4A*5CH
Connection: common anode
Input: (wire terminal or DC head)
V+: connect anode of power supply
V-: connect cathode of power supply
Output:
V+: connect anode of lamp
R: connect anode of red color
G: connect anode of green color
B: connect anode of blue color
W: connect anode of white color if your light have this port.
Software User Manual
Android Software
Name: Magic – WiFi Controller
Running platform: requires Android 2.3 (or above) with wifi function
Language: Chinese/English, app shows same language as your system in default
iOS Software
Name: Magic-WiFi
Running platform: requires ISO 6.0 or above

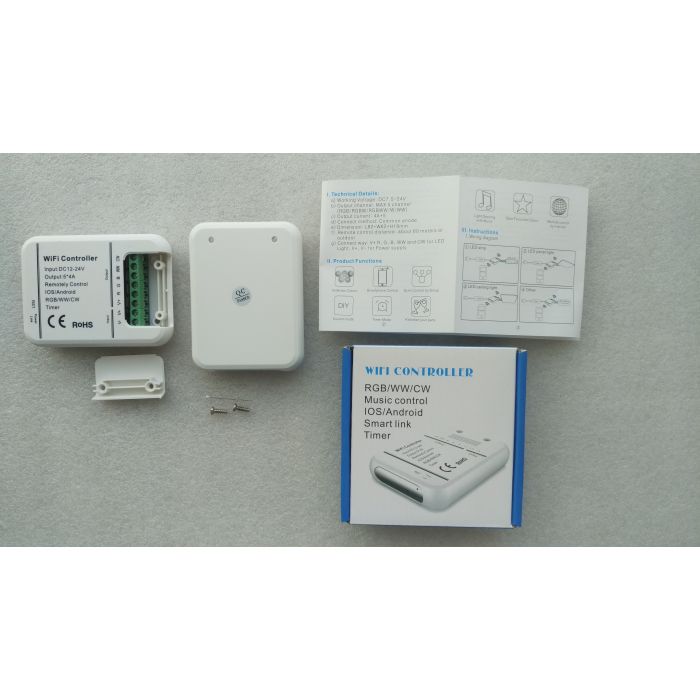

Package included: 1 piece * LED WiFi controller
