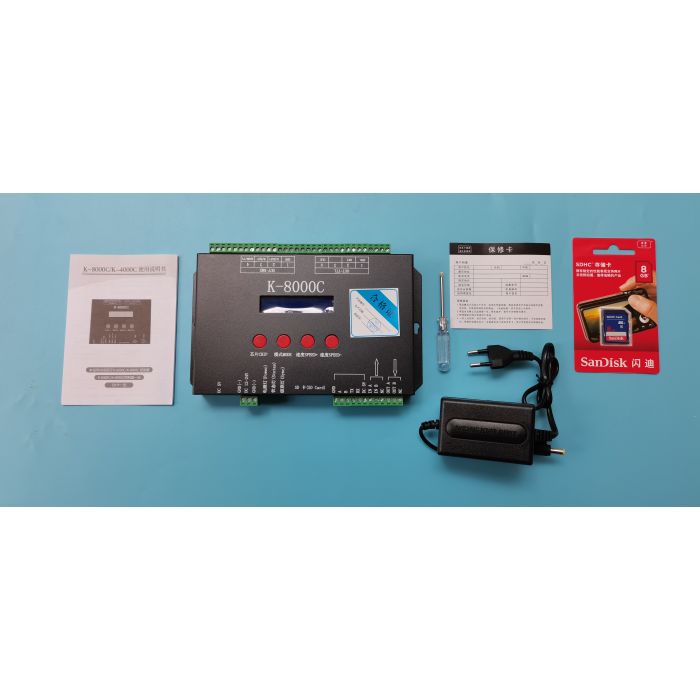

K-8000C digital SPI programmable LED light master controller

$99.95
In stock
SKU
5209
  • Buy 12 for $89.95 each and save 10%
  • Buy 100 for $87.50 each and save 12%

System features

32 to 65536 degree Gray control, Gamma correction procession handle.

Support various point, line light source, and all kinds of rules and specific shaped handle.

The controller has eight ports output, each port can support up to 512/1024 lights(DMX lights can support up to 512 pixels).

The playback content stored in SD card, the SD card can store up to 32 files, SD cared capacity supports 128MB-32GB.



The controller can single set use,also multiple controllers cascade, cascade optical isolation

mode: interference, better stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M2 pure copper power cord.

The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.

For the DMX lighting IC, the controller comes with write address function; In addition, with use of our 2016 LedEdit-K V3.26 or later edition can make one key write address function setting.

Support load lamp is 4 channels (RGBW) pixels, or split into single channel point pixels.

Enhanced 485 TTL and 485 differential (DMX) signal output.

The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.



Note:

1. The controller load lamps 512 points pixel, speed can reach up to 30 frames / second, 768 point pixel speed can reach up to 25 frames / sec, 1024 point pixel speed is about 22 frames / second (the above parameter is an example of 1903 agreement IC, different IC have difference)

2. International standard DMX512 (1990 agreement) maximum support 512 pixels. When the load is international standard 170 pixels, the speed can reach up to 30 frames / second, 340 pixels speed is about 20 frames / second, when 512 pixels speed is about 12 frames / second

3. Timing (holidays) Play Global Wireless GPS synchronization, control station channel distributor, please contact the salesman or technical support staff for more information.





T series such as T-300K, T-780K, T-800K works with 2019LedEdit-K 2019LedPlayer-K
