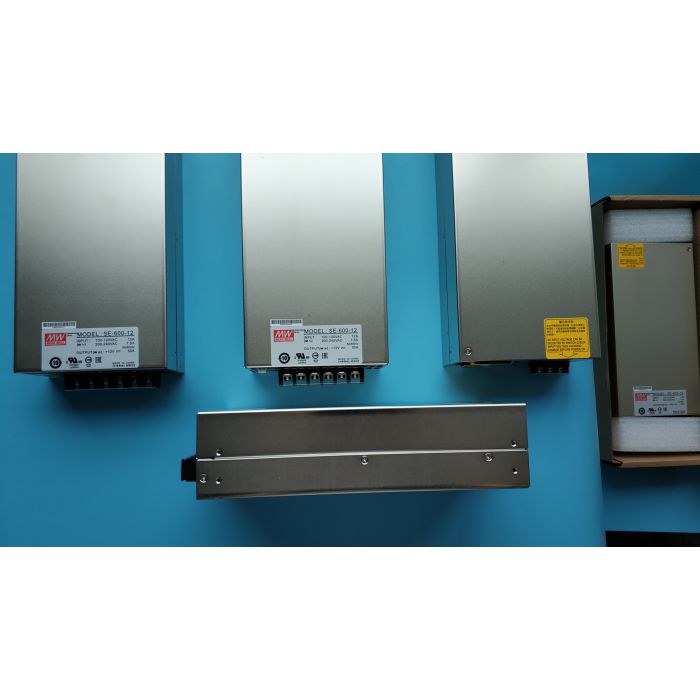

600W Mean Well SE-600 single output power supply

$56.75
In stock
SKU
1386
  • Buy 96 for $52.95 each and save 7%
  • Buy 1008 for $49.95 each and save 12%

Click here to view the SE-600 detailed specifications and operating manual

We are the distributor of Mean Well power supplies, genuine version, not cheap copycat




Feature
AC input active surge current limiting
AC input range selected by switch
Protections:Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
High power density 4.9w/inch
Built-in remote sense function
UL approved
Low cost
2 years warranty


Output
DC voltage: DC 5V (SE-600-5), 12V (SE-600-12, default), 15V (SE-600-15), 24V (SE-600-24), 27V (SE-600-27), 36V (SE-600-36), 48V (SE-600-48)

Rated current: 50/25A

Current range: 0~50A/0~25A

Rated power: 600W

Ripple & noise (max.): 150mVp-p

Voltage ADJ. range: 10~13.5V/20~26.4V


Voltage tolerance: ±1.0%

Line regulation: ±0.5%

Load regulation: ±0.5%

Setup, rise time: 1000ms, 50ms/230V AC 1000ms,50ms/115V AC at full load

Hold up time (Typ.): 20ms/230VAC 16ms/115VAC at full load



Input

Voltage range: 90~132V AC/180~264V AC by switch 254~370VDC

Frequency range: 47~63Hz

Efficieny (Typ.): 83%/87%

AC current (Typ.): 12A/115VAC 7.5A/230VAC

Inrush current (Typ.): 30A/115VAC 60A/230VAC

Leakage current: <2.0mA / 240VAC

Over load: 105 ~ 125% rated output power, Protection type : Shut down o/p voltage, re-power on to recover

Over voltage: 13.8 ~ 16.2V/27.6 ~ 32.4V Protection type :Shut down O/P voltage, re-power on to recover

Over temperature: 80~90 celsius (TSW1) detect on heatsink of power transistor Protection type : Shut down O/P voltage, recovers automatically after temperature goes down

Working TEMP.: -20 ~ +60 celsius (Refer to "Derating Curve")

Workking humidity: 20 ~ 90% RH non-condensing

Storage TEMP., humidity: -40 ~ +85 celsius, 10 ~ 95% RH

TEMP. coefficient: ±0.05%/ (0 ~ 50 clesius)

Vibration: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes



Safety standards: UL60950-1 approved

Withstand voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25 / 70% RH

MTBF: 197K hrs min. MIL-HDBK-217F (25celsius)

Dimension: 247*127*63.5mm (L*W*H)

Packing: 2.1Kg; 6pcs/13.4Kg/1.03CUFT



NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 celsius of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance: includes set up tolerance, line regulation and load regulation.
