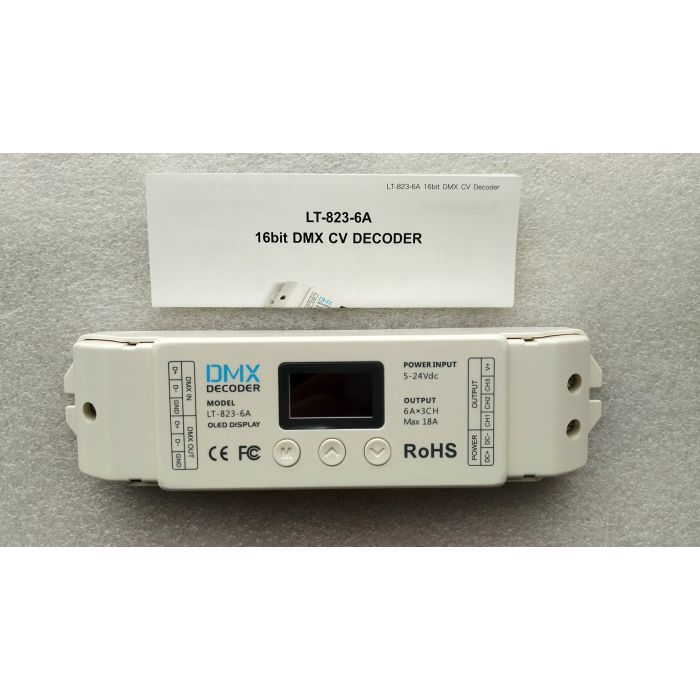

discontinued LTech LT-823-6A constant voltage LED DMX-PWM decoder
LT-823-6A is no longer produced, please consider other similar products
Made in Zhuhai of China, reliable quality with 5 years warranty, genuine version, not copycat
Direct from factory, good price, we are the distributor of LTech controllers
OLED real time display
16 bit or 8 bit input
3 dimming curve optional
Frame rate is as high as 850 FPS
Built-in protection circult of resistance to lightning stroke and ESD static electricity
Click here to view the LT-823-6A detailed specifications information
LT-823-6A is no longer produced, please consider other similar products
DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to CC/CV PWM signal to drive LED, which controlled by DMX512 console, realize 0-100% brightness or various changing effect. And can control single color, dupi-color, RGB, RGBY, RGBW, RGBA LED lights.
Have excellent performance:Â
16-bit dimming curve.
Frame rate is as high as 850 frames per second.
Built-in protection circuit of resistance to lighting stroke and ESD static electricity.
Â
|
LT-823-6A |
|
| Input signal | DMX512 |
| Input power | DC5V～DC24V |
| Max load current | 6A ×3CH Max 18A |
| Max output power | 90W/216W/432W/(5V/12V/24V) |
| Dimming range | 0～100% |
| Working temperature | -30℃～55℃ |
| Dimension | L175×W44×H30(mm) |
| Package Size | L178×W48×H33(mm) |
| Weight (G.W) | 175g |
OLED DMXÂ
The king of DMX Decoder
Excellent performance
The world's first DMX decoder with OLED screen display
16bit/8bit
CH 65536 grayscale/CH
