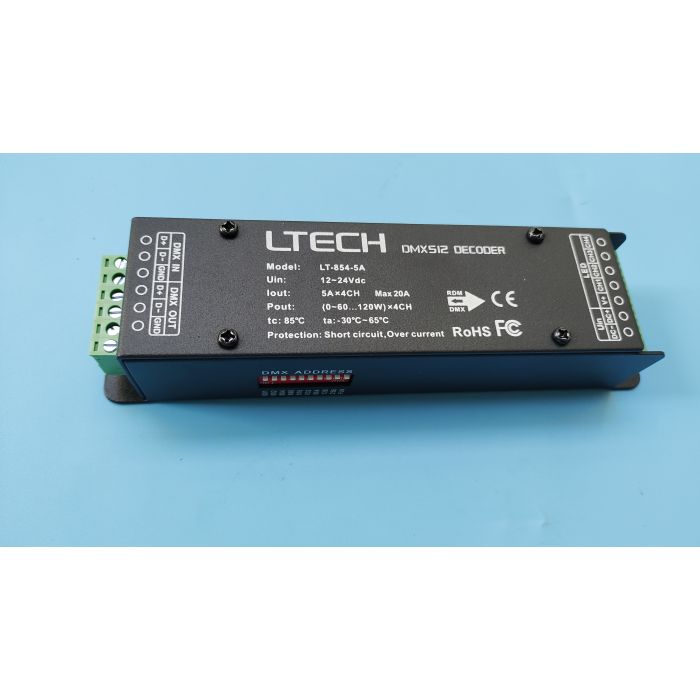

LTech LT-854-5A 4 channels RGBW LED DMX512-PWM decoder

$21.75
In stock
SKU
2138
  • Buy 30 for $19.95 each and save 8%

Made in Zhuhai of China, reliable quality with 5 years warranty, genuine version, not copycat

Direct from factory, good price, we are the distributor of LTech controllers

RGBW quad colors control

The 4 channels DMX512 RGBA or RGBW decoder will drive any of our RGB flexible strip lighting with the added advantage of driving a fourth channel of either white or amber.

Click here to know more details about LT-854-5A

LT-854-5A 4CH CV DMX Decoder

Input signal DMX512
Input power DC12V~DC24V
Max load current 5A ×4CH   Max 20A
Max output power 240W/480W(12V/24V)
DMX512 socket Green terminal
Dimming range 0~100%
Working temperature -30℃~65℃
Dimension L175×W42×H33mm
Package Size L178×W46×H40mm
Weight (G.W) 290g

DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to CC/CV PWM signal to drive LED, which controlled by DMX512 console, realize 0-100% brightness or various changing effect. And can control single color, dupi-color, RGB, RGBY, RGBW, RGBA LED lights.

Have excellent performance:

16-bit dimming curve.

Frame rate is as high as 850 frames per second.

Built-in protection circuit of resistance to lighting stroke and ESD static electricity.



Shell baking finish

High class, Good quality

Shell baking finish, use the same supplier as Dell computer case.



16-bit Dimming Curve

Deep Dimming

0-100% PWM dimming, accord with the sense of human eyes, more comfortable and natural lighting experience, suitable for TV shooting.

Dimming--more natural
Coloring--more vivid
Changing effects--more smooth



850 frames per second for frame rate

Higher processing

High-speed data process for the console, up to 850 frames per second.
