LTech DX series DX7 DX8 RF multi zone touch DMX512 controller
- Buy 1000 for $18.75 each and save 6%
LTech DX7 DX8
Made in Zhuhai of China, reliable quality with 5 years warranty, genuine version, not copycat
Direct from factory, good price, we are the distributor of LTech products

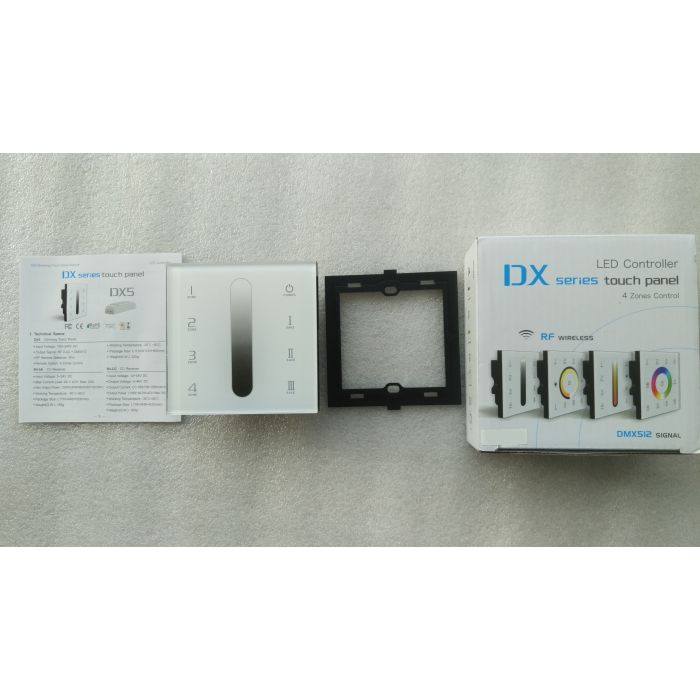

DX5 is the default controller, DX7, DX8 is optional
LTech DX7 DX8
DX series touch panel controller
DX series wall-mounted touch panel controller is widely installed in commercial / office/household, which has four types: single color/CT/RGB/RGBW control with 2.4G wireless zones’ control and cable output DMX512 signal. Apply for various kinds LEDs. DX Series Touch Panel Controller is the essence of others technology to provide you a high quality product.
Base on 2.4Hz wireless multi-zone control, no wiring trouble.

Can choose DMX 512 output, control DMX lamps.

Support 4 zones (only DX5, DX6, DX7, DX8), different zones can be in different control.

simple fashion and decent appearance design.

Unique structure, super easy to install/remove.

high accuracy touching IC+special post-processing, the touching accuracy is highly strengthened.

Fool type operation, easy to use.

Touching along with chord music & LED indicator.Visual & Auditory & Touch 3 layers to feel the light-changing synchronously.

Pioneered T-PWM dimming technology makes an almost perfect dimming/color-mixing performance.

Support several panels to achieve multi-connected control.
Product parameter
Wireless multi zone series
|
DX5 dimmer |
||
| Input voltage | AC100~240V |
 |
| Output signal | RF 2.4G+DMX512 | |
| Control mode | 4 Zones control | |
| RF Remote distance | 30m | |
| Working temperature | -20℃～60℃ | |
| Dimensions | L86×W86×H36mm | |
| Package Size | L112×W112×H48mm | |
| Weight (N.W.) | 225g | |
|
DX6 color temperature controller |
||
| Input voltage | AC100~240V |
 |
| Output signal | RF 2.4G+DMX512 | |
| Control mode | 4 Zones control | |
| RF Remote distance | 30m | |
| Working temperature | -20℃～60℃ | |
| Dimensions | L86×W86×H36mm | |
| Package Size | L112×W112×H48mm | |
| Weight (N.W.) | 225g | |
|
DX7 color temperature controller |
||
| Input voltage | AC100~240V |
 |
| Output signal | RF 2.4G+DMX512 | |
| Control mode | 4 Zones control | |
| RF Remote distance | 30m | |
| Working temperature | -20℃～60℃ | |
| Dimensions | L86×W86×H36mm | |
| Package Size | L112×W112×H48mm | |
| Weight (N.W.) | 225g | |
|
DX8 RGBW controller |
||
| Input voltage | AC100~240V |
 |
| Output signal | RF 2.4G+DMX512 | |
| Control mode | 4 Zones control | |
| RF Remote distance | 30m | |
| Working temperature | -20℃～60℃ | |
| Dimensions | L86×W86×H36mm | |
| Package Size | L112×W112×H48mm | |
| Weight (N.W.) | 225g | |
|
R4-5A CV Zone Receiving controller |
||
| Working Frequency | 2.4GHz |
 |
| Input voltage | DC5V~DC24V | |
| Max current load | 5A x4CH Max 20A | |
| Max output power | 100W/240W/480W(5V/12V/24V) | |
| Remote Distance | 30m | |
| Working temperature | -30℃～55℃ | |
| Dimensions | L175×W44×H30mm | |
| Package size | L178×W48×H33mm | |
| Weight (G.W.) | 150g | |
|
R4-CC Constant Current Zone Receiving controller |
||
| Working Frequency | 2.4GHz |
|
| Input voltage | DC12V~DC48V | |
| Output voltage | DC3V~46V | |
| Output current | CC 350/700/1050mA×4CH(3 in 1) | |
| Output power | 1.05W-48.3W×4CH Max 193.2W | |
| Remote Distance | 30m | |
| Working temperature | -30℃～55℃ | |
| Dimensions | L175×W44×H30mm | |
| Package size | L178×W48×H33mm | |
| Weight (G.W.) | 165 | |
Product feature
Based on 2.4GHz
Controller control the LEDs by the wireless zones receiver, base on 2.4GHz wireless control, no wiring trouble, user experience the free and fun of the wireless control!
Support multi-zones control
Support 4 zones (only DX5, DX6, DX7, DX8), different zones can be in different control without wiring, easily and simple for engineering installation.
DMX512 Output
Support DMX512 output, can be used as a master, control DMX lamps.
High-grade tempered glass panel
Adopt high-grade tempered glass panel, super easy to operate and with a bounch of outstanding featueres: nobleness & elegance, well protected against moisture, water, Corrosion and dust. Easy to clean. high strength, nonbreakable and Scratch Resistance, Non-defrmation, nondiscolouring, durable.
Latest human detection design. Capacitive touching sensor
High accuracy touching IC+special post-processing, the touching accuracy is highly strengthened, soft to the touch but highly sensitive.
Humanized touch circle
Equipped with single color, two colors or colorful touch circle .adopt high accuracy Capacitive touch control chip, increases touch sensitivity and decreases mistaken triggering. Makes LED dimming and color chosen more humanized.
Touching along with chord music
LED indicator emits pale blue light when touching the keys, along with beautiful chord music. Visual & Auditory & Touch 3 layers to feel the light-changing synchronously.
LED night indicator
With the LED indicator it is very easy to find the switch in the dark.
T-PWM dimming technology
Pioneered T-PWM dimming technology makes an almost perfect dimming/ color-mixing performance.
Support several panels to achieve multi-connected control
You can install the panels in different places to control the same LED, which will be convenient for the multi-connected and multi-control.
As the photo on the left, you can install a DX5 panel both in your bed room and doorway to control the indoor light, we can turn off the light without getting up with the help of it.
Installed in standard 86 boxes
Professional shell design combined with sealed PCB, super easy to install & remove. Unlike the similar ones in the market. Which needs to take the controller apart while installation, the PCB will be exposed and easily damaged during this course.
